pCDNA3-Flag MKK6(glu)
(Plasmid #13518)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 13518 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

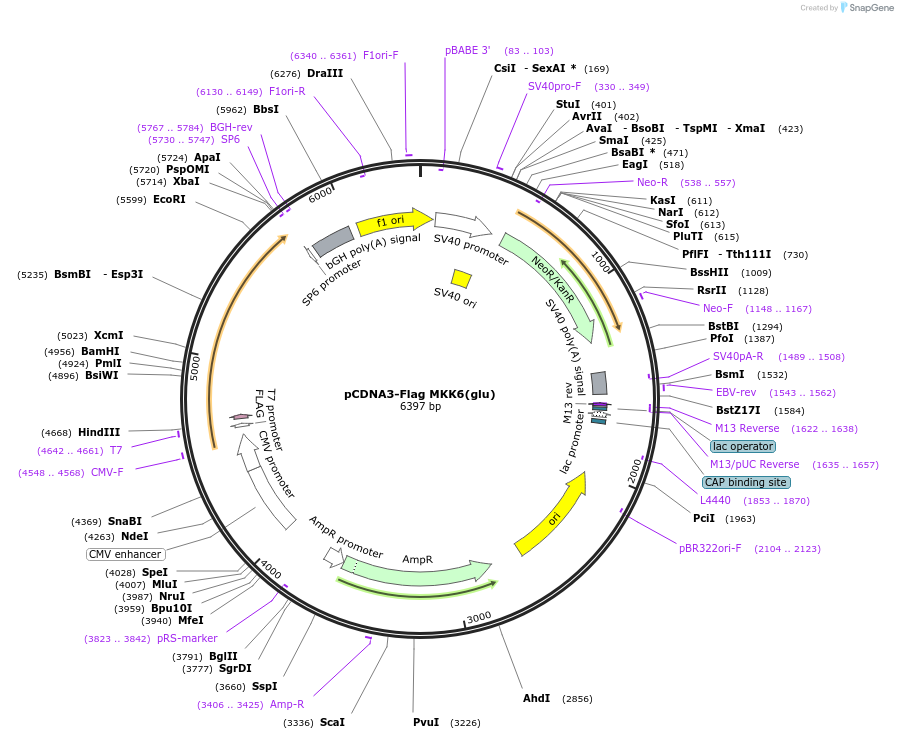

Backbone

  • Vector backbone
    pCDNA3
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5446
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    MKK6(glu)
  • Alt name
    MKK6
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1044
  • Mutation
    Ser-207Glu Thr-211Glu
  • GenBank ID
    U39656
  • Entrez Gene
    MAP2K6 (a.k.a. MAPKK6, MEK6, MKK6, PRKMK6, SAPKK-3, SAPKK3)
  • Promoter CMV
  • Tag / Fusion Protein
    • Flag (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Hind III (not destroyed)
  • 3′ cloning site Xba I (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer BGH-rev
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCDNA3-Flag MKK6(glu) was a gift from Roger Davis (Addgene plasmid # 13518 ; http://n2t.net/addgene:13518 ; RRID:Addgene_13518)
  • For your References section:

    MKK3- and MKK6-regulated gene expression is mediated by the p38 mitogen-activated protein kinase signal transduction pathway. Raingeaud J, Whitmarsh AJ, Barrett T, Derijard B, Davis RJ. Mol Cell Biol. 1996 Mar . 16(3):1247-55. PubMed 8622669
