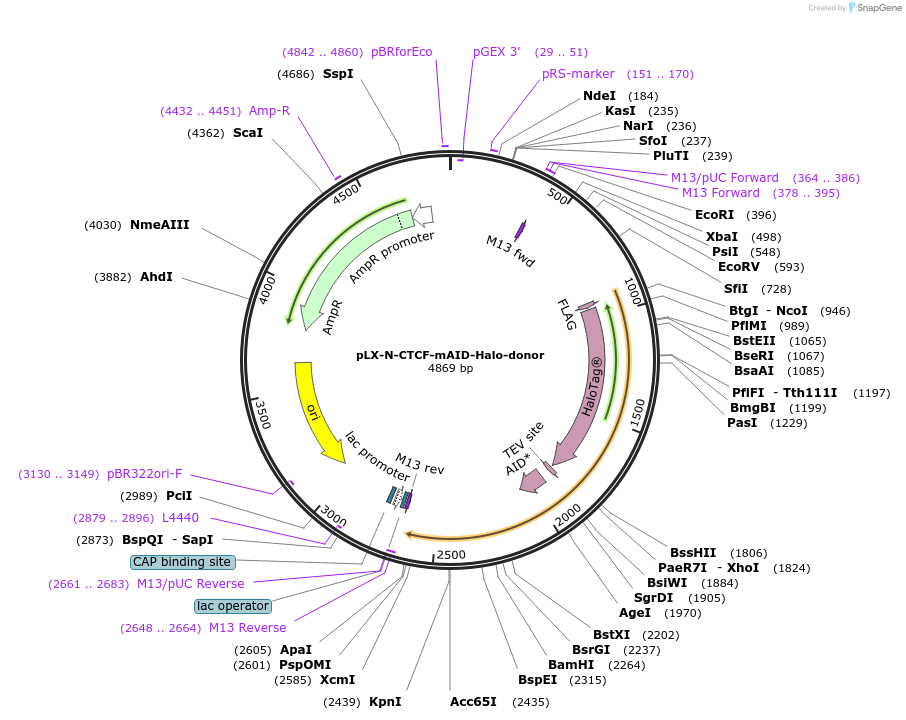

pLX-N-CTCF-mAID-Halo-donor
(Plasmid #139747)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 139747 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pUC19
  • Vector type
    CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    CTCF CRISPR knock-in
  • Species
    M. musculus (mouse)
  • Entrez Gene
    Ctcf
  • Tag / Fusion Protein
    • mAID-HaloTag (N terminal on insert)

Cloning Information

Resource Information

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLX-N-CTCF-mAID-Halo-donor was a gift from Robert Tjian (Addgene plasmid # 139747 ; http://n2t.net/addgene:139747 ; RRID:Addgene_139747)
  • For your References section:

    3D ATAC-PALM: super-resolution imaging of the accessible genome. Xie L, Dong P, Chen X, Hsieh TS, Banala S, De Marzio M, English BP, Qi Y, Jung SK, Kieffer-Kwon KR, Legant WR, Hansen AS, Schulmann A, Casellas R, Zhang B, Betzig E, Lavis LD, Chang HY, Tjian R, Liu Z. Nat Methods. 2020 Apr;17(4):430-436. doi: 10.1038/s41592-020-0775-2. Epub 2020 Mar 16. 10.1038/s41592-020-0775-2 PubMed 32203384
