PurposeExpresses a gRNA that overlaps the startcodon of human CTNNB1
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||153429||Standard format: Plasmid sent in bacteria as agar stab||1||$85|
This material is available to academics and nonprofits only.

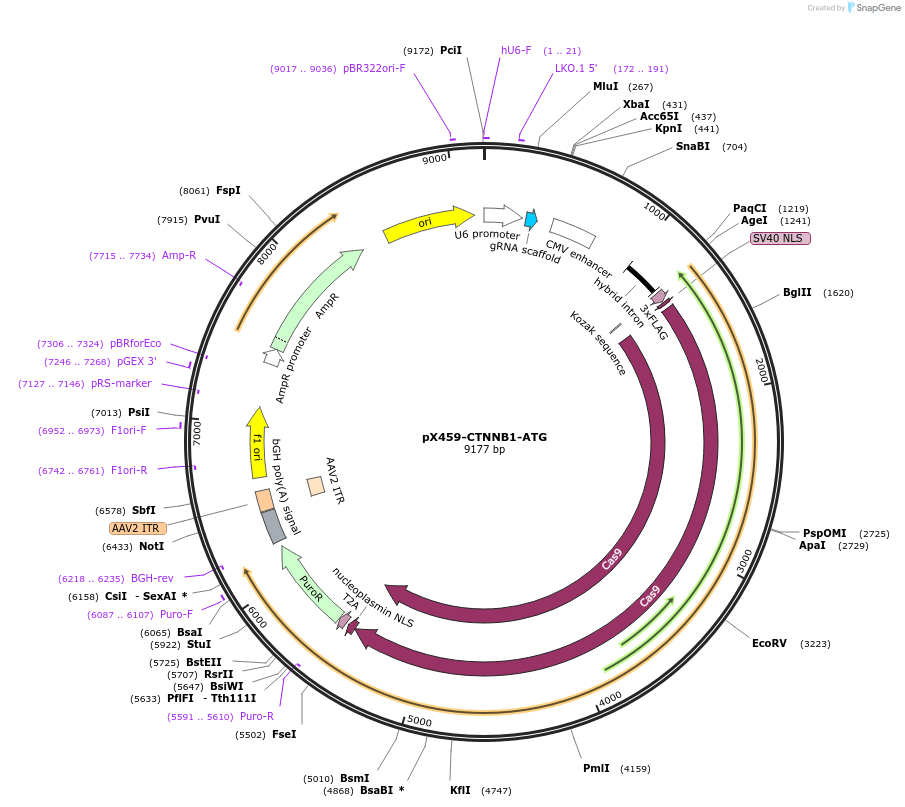

Vector backbonepSpCas9(BB)-2A-Puro (PX459) V2.0 (Feng Zhang, Plasmid #62988)
- Backbone size w/o insert (bp) 9158
- Total vector size (bp) 9178
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
Bacterial Resistance(s)Ampicillin, 100 μg/mL
Copy numberHigh Copy
Gene/Insert nameCTNNB1 gRNA
SpeciesH. sapiens (human)
Entrez GeneCTNNB1 (a.k.a. CTNNB, EVR7, MRD19, NEDSDV, armadillo)
- Promoter U6
- Cloning method Restriction Enzyme
- 5′ cloning site BbsI (destroyed during cloning)
- 3′ cloning site BbsI (destroyed during cloning)
- 5′ sequencing primer U6 FWD (Common Sequencing Primers)
Article Citing this Plasmid
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.
Please visit https://www.biorxiv.org/content/10.1101/2020.05.28.120543v1 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pX459-CTNNB1-ATG was a gift from Renee van Amerongen (Addgene plasmid # 153429 ; http://n2t.net/addgene:153429 ; RRID:Addgene_153429)
For your References section:Quantitative live-cell imaging and computational modeling shed new light on endogenous WNT/CTNNB1 signaling dynamics. de Man SM, Zwanenburg G, van der Wal T, Hink MA, van Amerongen R. Elife. 2021 Jun 30;10. pii: 66440. doi: 10.7554/eLife.66440. 10.7554/eLife.66440 PubMed 34190040
