PB-U6-DR-SgRNA-DR-EF1a-mCherry-SV40
(Plasmid
#154002)
-
PurposeEmpty SgRNA expression system matching CasRx
-
Depositing Lab
-
Depositing OrganizationCenter for Excellence in Brain Science and Intelligence Technology, Chinese Academy of Sciences
Located in China -

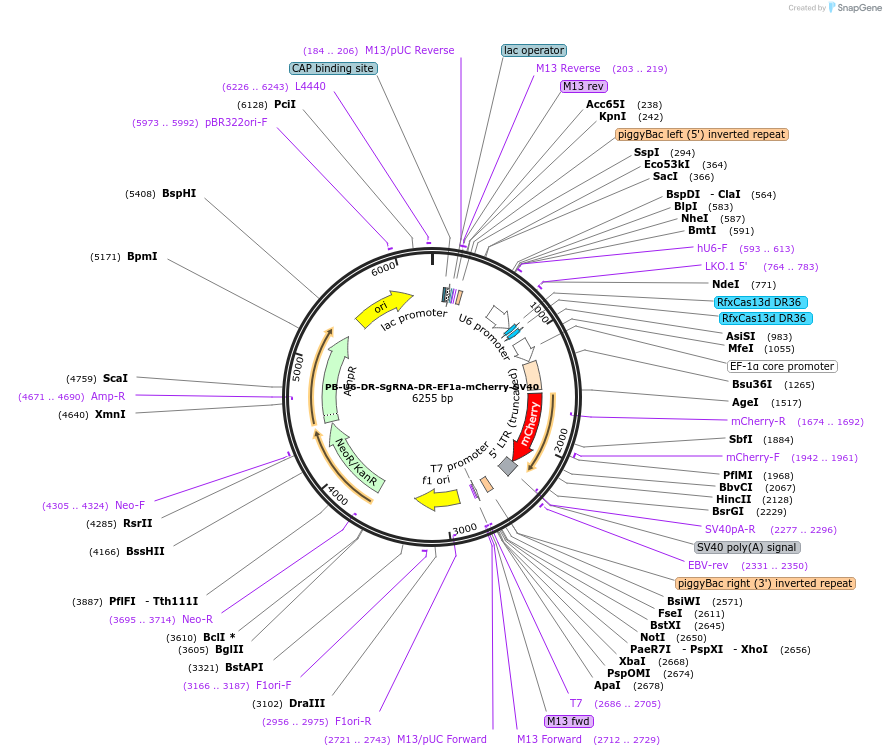

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 154002 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 154002-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 154002-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonePB
-
Vector typeCRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin and Kanamycin, 100 & 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameSgRNA expression system
-
SpeciesSynthetic
-
Insert Size (bp)1769
- Promoter U6, EF1a
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site unknown (unknown if destroyed)
- 3′ cloning site unknown (unknown if destroyed)
- 5′ sequencing primer unknown
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
INSERT: mCherry driven by EF1a promoter.
INSERT: DR-SgRNA driven by U6 promoter.
DNA (Catalog # 154002-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 154002-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
PB-U6-DR-SgRNA-DR-EF1a-mCherry-SV40 was a gift from Hui Yang (Addgene plasmid # 154002 ; http://n2t.net/addgene:154002 ; RRID:Addgene_154002) -
For your References section:
Modulation of metabolic functions through Cas13d-mediated gene knockdown in liver. He B, Peng W, Huang J, Zhang H, Zhou Y, Yang X, Liu J, Li Z, Xu C, Xue M, Yang H, Huang P. Protein Cell. 2020 Mar 18. pii: 10.1007/s13238-020-00700-2. doi: 10.1007/s13238-020-00700-2. 10.1007/s13238-020-00700-2 PubMed 32185621
