PurposeA human codon-optimized SpCas9 and chimeric guide RNA (gRNA3) expression plasmid.
-
Depositing Lab
-
Depositing OrganizationInstitute of Atomic and Molecular Sciences, Academia Sinica
Located in Taiwan -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 158973 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 158973-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 158973-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepX330-U6-Chimeric_BB-CBh-hSpCas9
- Total vector size (bp) 8509
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namegRNA3
-
Alt namepX330-gRNA
-
SpeciesSynthetic
-
Insert Size (bp)21
- Promoter U6
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site Bbs-I (destroyed during cloning)
- 3′ cloning site Bbs-I (destroyed during cloning)
- 5′ sequencing primer GAGGGCCTATTTCCCATGATTCC
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byThe plasmid was generated from Addgene Plasmid #42230 by cloning gRNA3 into the pX330 backbone.
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 158973-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 158973-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pX330-gRNA was a gift from Charles P. Lai (Addgene plasmid # 158973 ; http://n2t.net/addgene:158973 ; RRID:Addgene_158973) -
For your References section:
A multiplexed bioluminescent reporter for sensitive and non-invasive tracking of DNA double strand break repair dynamics in vitro and in vivo. Chien JC, Tabet E, Pinkham K, da Hora CC, Chang JC, Lin S, Badr CE, Lai CP. Nucleic Acids Res. 2020 Aug 14. pii: 5892751. doi: 10.1093/nar/gkaa669. 10.1093/nar/gkaa669 PubMed 32797168

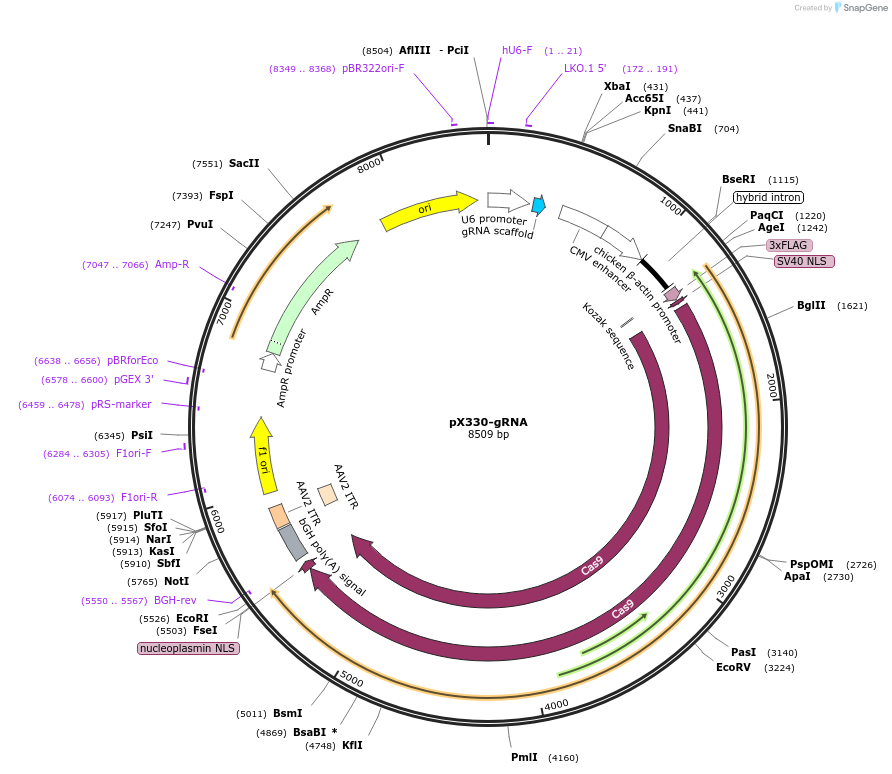

Map uploaded by the depositor.
