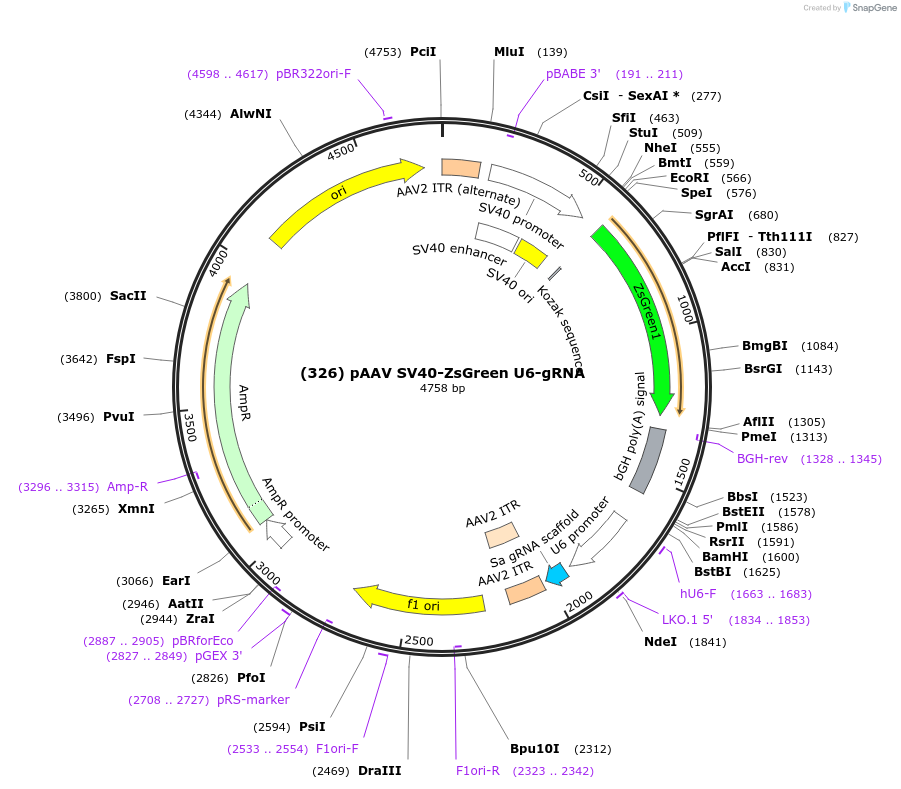

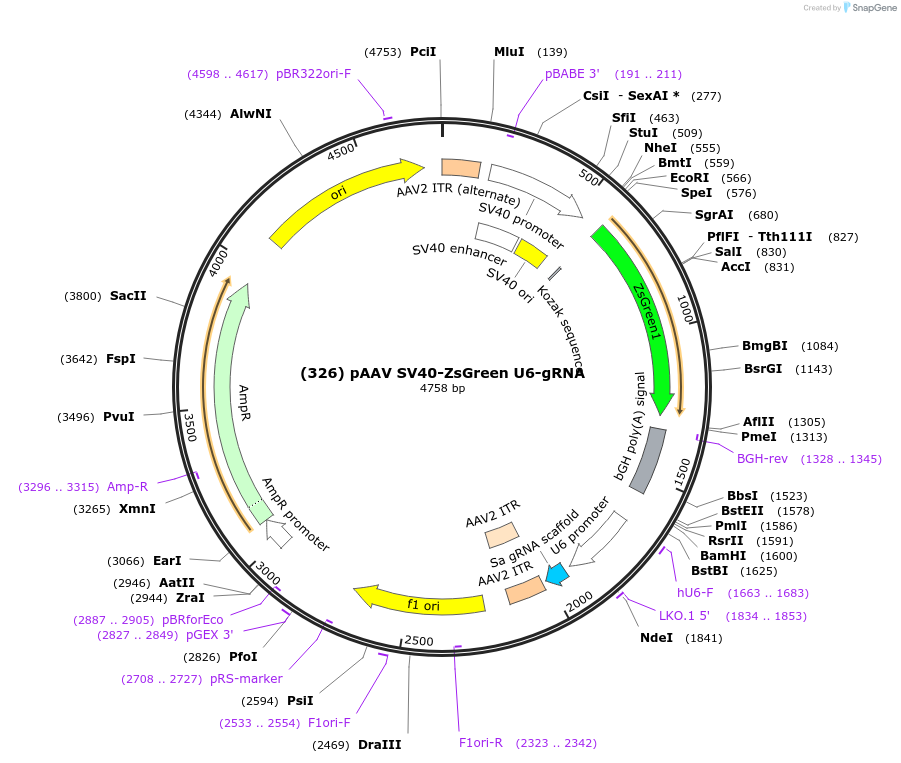

(326) pAAV SV40-ZsGreen U6-gRNA
(Plasmid #163020)

• Purpose: Fluorescent reporter for Sa gRNA (Bsa1 sites)
• Depositing Lab: Tonia Rex
• Publication: Backstrom et al Mol Ther Methods Clin Dev. 2020 Sep 6;19:139-148. doi: 10.1016/j.omtm.2020.09.001. eCollection 2020 Dec 11.

Backbone

• Vector backbone: AAV2
• Backbone manufacturer: Cell Biolabs
• Backbone size w/o insert (bp): 4000
• Total vector size (bp): 4758
• Vector type: Mammalian Expression, AAV

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): NEB Stable
• Growth instructions: 34-35 degrees is ideal
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: Zs Green
• Species: Zoanthus sp.
• Insert Size (bp): 724
• GenBank ID: AAF03372.1
• Promoter: SV40

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: Spe1 (not destroyed)
• 3′ cloning site: Kpn1 (not destroyed)
• 5′ sequencing primer: SV40-S
• 3′ sequencing primer: bGH-A

Resource Information

• Supplemental Documents:
  • (326) pAAV SV40-zsGreen Sa U6-gRNA.gbk
• A portion of this plasmid was derived from a plasmid made by: Purchased from Takara Bio.

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
