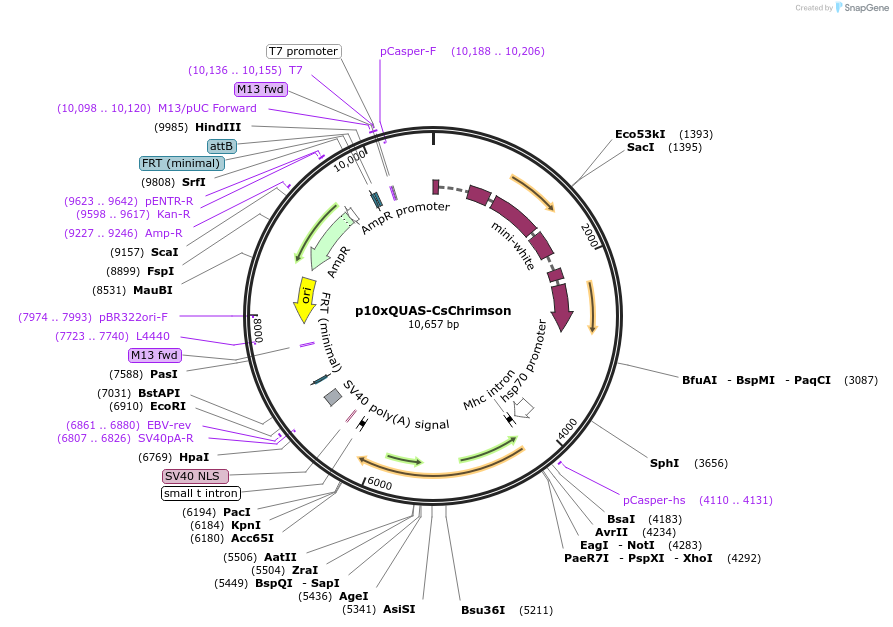

(Plasmid #163629)


Item Catalog # Description Quantity Price (USD)
Plasmid 163629 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
    synthetic- Potter Lab
  • Backbone size w/o insert (bp) 8335
  • Total vector size (bp) 10676
  • Modifications to backbone
    includes P-element sites for P-element transposase insertion; also includes attB site for integration into attP genomic sites
  • Vector type
    Insect Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number


  • Gene/Insert name
  • Alt name
  • Species
  • Insert Size (bp)
  • Tag / Fusion Protein
    • mVenus (C terminal on insert)

Cloning Information

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    PCR amplified from genomic DNA of UAS-CsChrimson flies.
  • Article Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Read the preprint on bioRxiv:

Also refer to: Klapoetke, N.C., Murata, Y., Kim, S.S., Pulver, S.R., Birdsey-Benson, A., Cho, Y.K., Morimoto, T.K., Chuong, A.S., Carpenter, E.J., Tian, Z., et al. (2014). Independent optical excitation of distinct neural populations. Nat Methods 11, 338-346. PMID: 24509633,

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    p10xQUAS-CsChrimson was a gift from Christopher Potter (Addgene plasmid # 163629 ; ; RRID:Addgene_163629)
  • For your References section:

    Chemoreceptor co-expression in Drosophila melanogaster olfactory neurons. Task D, Lin CC, Vulpe A, Afify A, Ballou S, Brbic M, Schlegel P, Raji J, Jefferis G, Li H, Menuz K, Potter CJ. Elife. 2022 Apr 20;11. pii: 72599. doi: 10.7554/eLife.72599. 10.7554/eLife.72599 PubMed 35442190
