pRM27
(Plasmid
#163695)
-
Purposeubb promoter driven expression of lck:mNeonGreen
-
Depositing Lab
-
Depositing OrganizationStony Brook University
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 163695 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 163695-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 163695-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepminiTol2
-
Backbone manufacturerStephen Ekker (Plasmid #31829)
- Backbone size w/o insert (bp) 7065
- Total vector size (bp) 7805
-
Modifications to backboneubb promoter inserted at BamHI site, lck:mNeonGreen inserted between BamHI and ClaI
-
Vector typeZebrafish expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namelck:mNeonGreen
-
SpeciesD. rerio (zebrafish)
-
Insert Size (bp)740
-
Entrez Genelck (a.k.a. zgc:136695)
- Promoter ubb
-
Tag
/ Fusion Protein
- mNeonGreen (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer GTAATACGACTCACTATAGGG
- 3′ sequencing primer ATTAACCCTCACTAAAGGGA
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 163695-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 163695-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pRM27 was a gift from David Matus (Addgene plasmid # 163695 ; http://n2t.net/addgene:163695 ; RRID:Addgene_163695) -
For your References section:
Visualizing the metazoan proliferation-quiescence decision in vivo. Adikes RC, Kohrman AQ, Martinez MAQ, Palmisano NJ, Smith JJ, Medwig-Kinney TN, Min M, Sallee MD, Ahmed OB, Kim N, Liu S, Morabito RD, Weeks N, Zhao Q, Zhang W, Feldman JL, Barkoulas M, Pani AM, Spencer SL, Martin BL, Matus DQ. Elife. 2020 Dec 22;9. pii: 63265. doi: 10.7554/eLife.63265. 10.7554/eLife.63265 PubMed 33350383

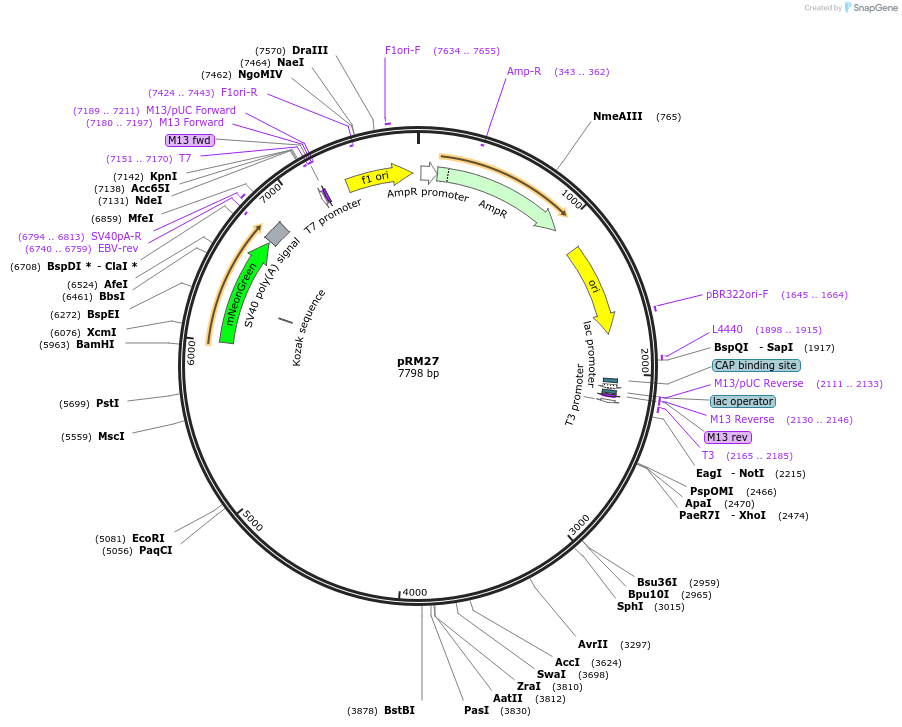

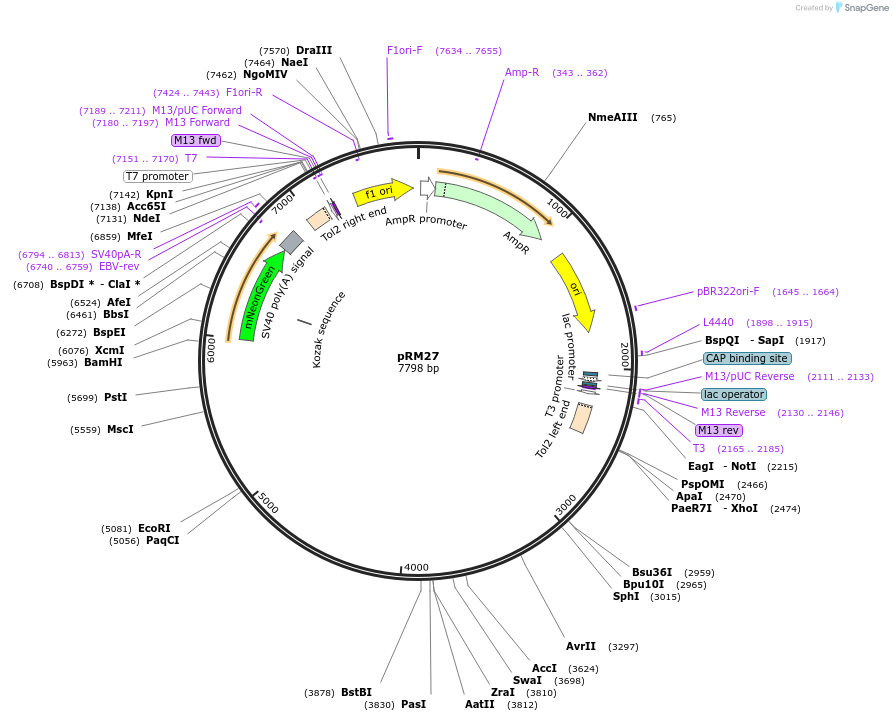

Map uploaded by the depositor.
