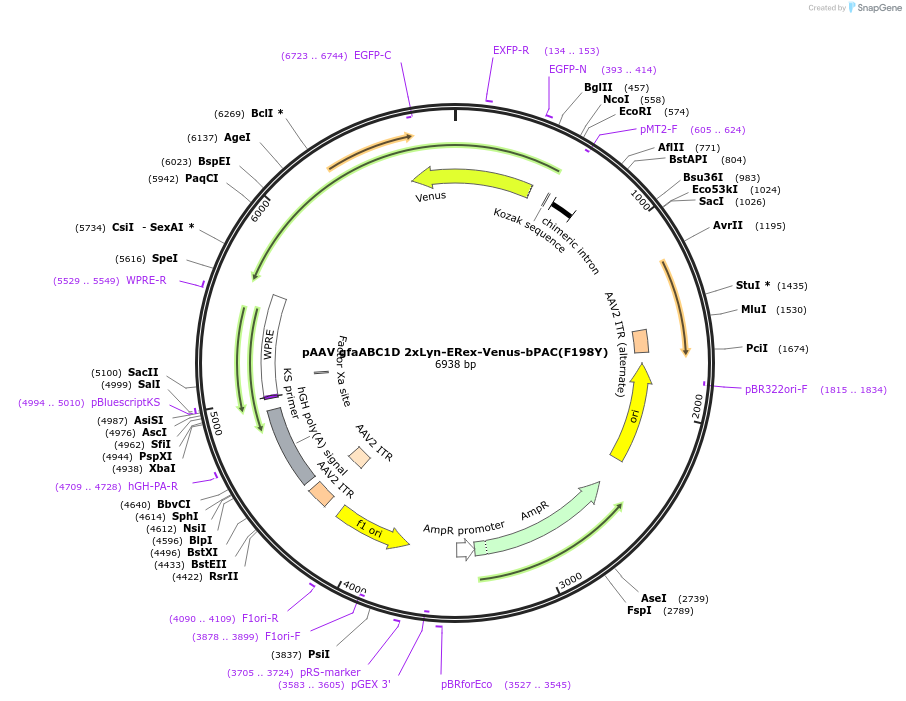

pAAV gfaABC1D 2xLyn-ERex-Venus-bPAC(F198Y)
(Plasmid #171117)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 171117 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pAAV
  • Backbone manufacturer
    Stratagene
  • Backbone size w/o insert (bp) 5055
  • Total vector size (bp) 6941
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    2xLyn-ERex-Venus-bPAC(F198Y)
  • Alt name
    PACmn
  • Species
    Synthetic; Beggiatoa
  • Insert Size (bp)
    1885
  • Promoter gfaABC1D
  • Tag / Fusion Protein
    • Venus

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer GTTGATTATCGATAAGCTTA
  • 3′ sequencing primer GTAATCCAGAGGTTGATTATCG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Insert was assembled in the lab of Georg Nagel, the promotor is from Baljit Khakh
Addgene ID #52925

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV gfaABC1D 2xLyn-ERex-Venus-bPAC(F198Y) was a gift from Thomas Oertner (Addgene plasmid # 171117 ; http://n2t.net/addgene:171117 ; RRID:Addgene_171117)
  • For your References section:

    PACmn for improved optogenetic control of intracellular cAMP. Yang S, Constantin OM, Sachidanandan D, Hofmann H, Kunz TC, Kozjak-Pavlovic V, Oertner TG, Nagel G, Kittel RJ, Gee CE, Gao S. BMC Biol. 2021 Oct 18;19(1):227. doi: 10.1186/s12915-021-01151-9. 10.1186/s12915-021-01151-9 PubMed 34663304
