pX335-NQL002-WAPL-sgRNA1
(Plasmid
#175550)
-
PurposeFor transient expression of spCas9-nickase and one sgRNA targeting the mouse WAPL locus. Use together with pX335-NQL003-WAPL-sgRNA2 targeting construct.
-
Depositing Lab
-
Depositing OrganizationNetherlands Cancer Institute
Located in Netherlands -

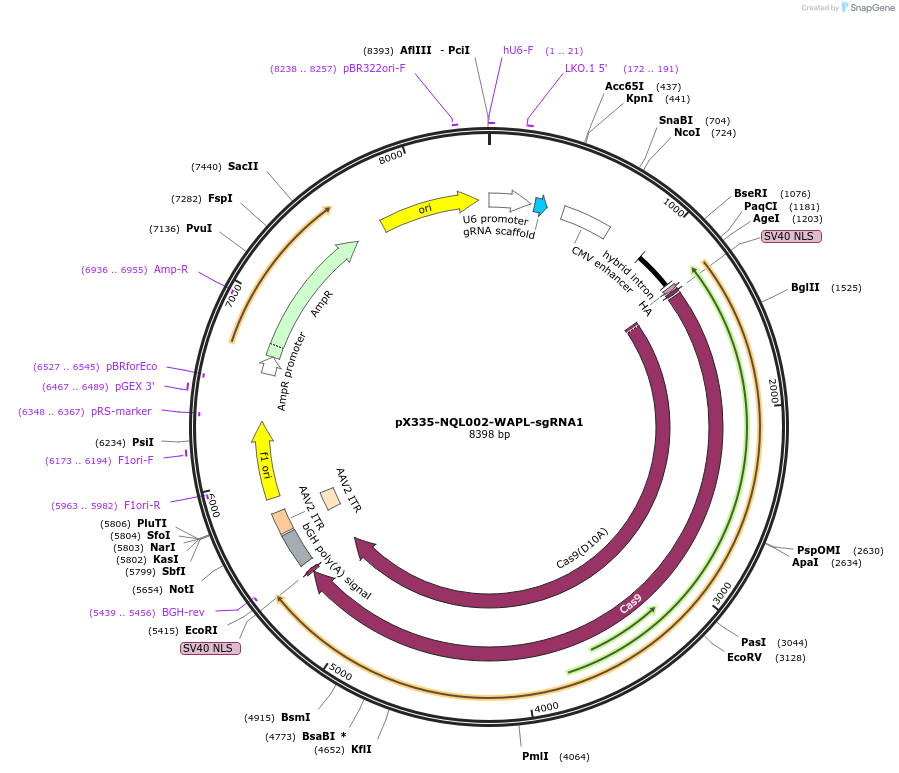

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 175550 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 175550-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 175550-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepX335
-
Backbone manufacturerAddgene 42335
-
Vector typeMammalian Expression, Mouse Targeting
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Growth instructionsUse together with pX335-NQL003-WAPL-sgRNA2
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namespCas9-nickase and sgRNA against mouse WAPL STOP Codon
-
gRNA/shRNA sequenceTCACTCTAGAGATAGACTTC
-
SpeciesM. musculus (mouse)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 175550-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 175550-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pX335-NQL002-WAPL-sgRNA1 was a gift from Elzo de Wit (Addgene plasmid # 175550 ; http://n2t.net/addgene:175550 ; RRID:Addgene_175550) -
For your References section:
WAPL maintains a cohesin loading cycle to preserve cell-type-specific distal gene regulation. Liu NQ, Maresca M, van den Brand T, Braccioli L, Schijns MMGA, Teunissen H, Bruneau BG, Nora EP, de Wit E. Nat Genet. 2021 Jan;53(1):100-109. doi: 10.1038/s41588-020-00744-4. Epub 2020 Dec 14. 10.1038/s41588-020-00744-4 PubMed 33318687
