pDronpa-N1-Tau-μDpTT
(Plasmid
#182323)
-
PurposeMicrotubule-targeted Dronpa chromophore-removed FLINC (DrFLINC) pair. Fluctuating red-fluorescent label for live-cell super-resolution imaging.
-
Depositing Lab
-
Depositing OrganizationUniversity of California, San Diego (UCSD)
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 182323 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 182323-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 182323-D100 | 100 μg of DNA in Tris buffer | $585 | ||

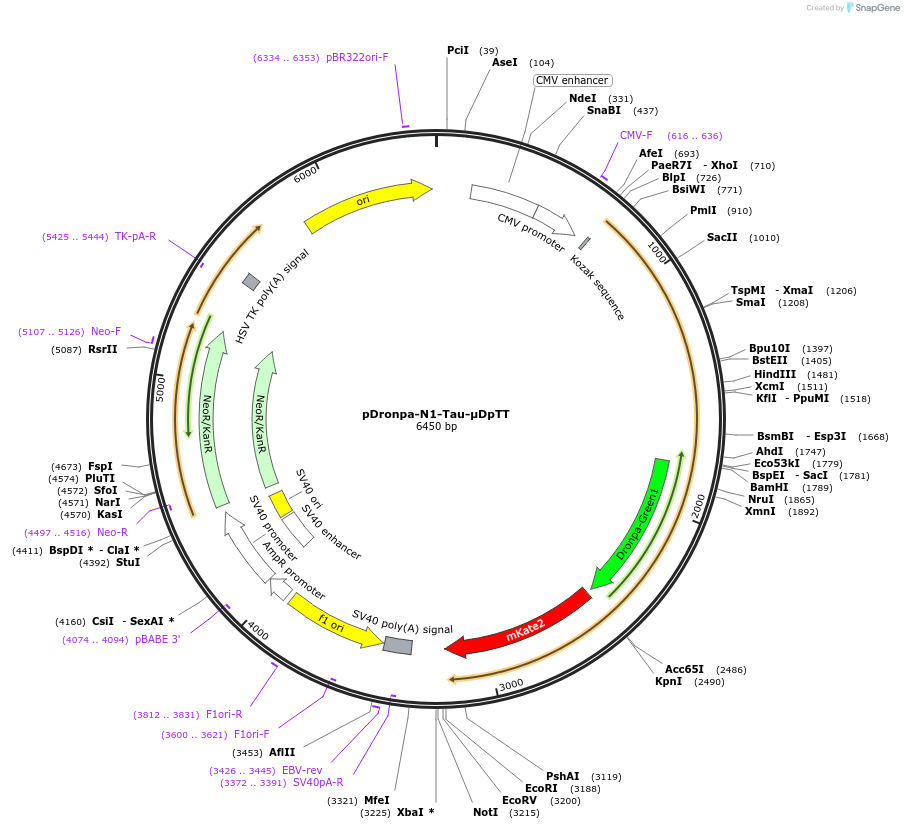

Backbone
-
Vector backbonepDronpa-N1
- Backbone size w/o insert (bp) 3984
- Total vector size (bp) 6450
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameTau-μDronpa-TagRFP-T
-
Alt nameTau-Dronpa(H193T)-DEVD-TagRFP-T
-
Insert Size (bp)2466
-
MutationDronpa contains H193T mutation.
- Promoter CMV
-
Tag
/ Fusion Protein
- MAP tau (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site XhoI (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer CMV forward
- 3′ sequencing primer SV40pA reverse
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 182323-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 182323-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pDronpa-N1-Tau-μDpTT was a gift from Jin Zhang (Addgene plasmid # 182323 ; http://n2t.net/addgene:182323 ; RRID:Addgene_182323) -
For your References section:
DrFLINC Contextualizes Super-resolution Activity Imaging. Lin W, Mo GCH, Mehta S, Zhang J. J Am Chem Soc. 2021 Sep 22;143(37):14951-14955. doi: 10.1021/jacs.1c05530. Epub 2021 Sep 13. 10.1021/jacs.1c05530 PubMed 34516108
