pX459-HypaCas9-mR2-CfANLN_sgRNA
(Plasmid #183879)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 183879 Standard format: Plasmid sent in bacteria as agar stab 1 $85

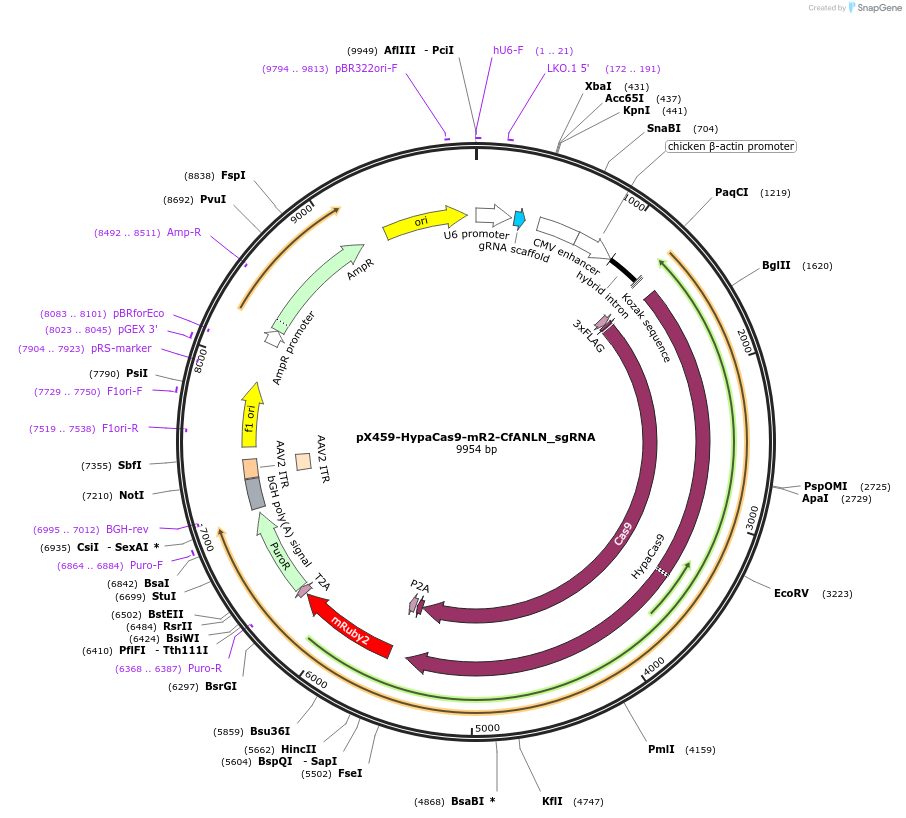

Backbone

  • Vector backbone
    pX459V2.0-HypaCas9-mRuby2
  • Total vector size (bp) 9955
  • Vector type
    Mammalian Expression, CRISPR
  • Selectable markers
    Puromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Canis familiaris ANLN sgRNA spacer
  • Alt name
    Anillin
  • gRNA/shRNA sequence
    GGCGATGGACCCGTTTACCG
  • Species
    Canis familiaris
  • Promoter U6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BbsI (destroyed during cloning)
  • 3′ cloning site BbsI (destroyed during cloning)
  • 5′ sequencing primer gagggcctatttcccatgattcc
  • 3′ sequencing primer ggccatttaccgtaagttatgtaacg
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pX459-HypaCas9-mR2-CfANLN_sgRNA was a gift from Alisa Piekny (Addgene plasmid # 183879 ; http://n2t.net/addgene:183879 ; RRID:Addgene_183879)
  • For your References section:

    Cytokinetic diversity in mammalian cells is revealed by the characterization of endogenous anillin, Ect2 and RhoA. Husser MC, Ozugergin I, Resta T, Martin VJJ, Piekny AJ. Open Biol. 2022 Nov;12(11):220247. doi: 10.1098/rsob.220247. Epub 2022 Nov 23. 10.1098/rsob.220247 PubMed 36416720
