Stx3-mCherry
(Plasmid
#190890)
-
PurposeExpresses syntaxin 3 fused to mCherry in mammalian cells
-
Depositing Lab
-

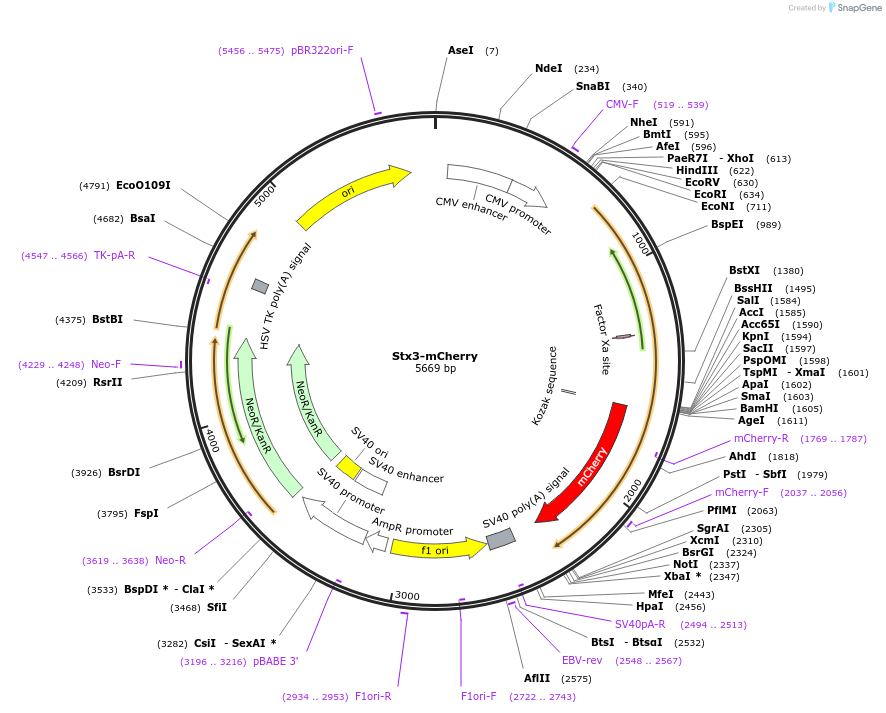

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 190890 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $89 |
Backbone
-
Vector backbonepmCherry-N1
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameStx3
-
Alt nameSyntaxin-3
-
Alt nameSyntaxin 3
-
SpeciesR. norvegicus (rat)
-
GenBank IDNM_031124.1
-
Entrez GeneStx3 (a.k.a. Stx3a)
- Promoter CMV
-
Tag
/ Fusion Protein
- mCherry (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site BamHI (not destroyed)
- 5′ sequencing primer TAACAACTCCGCCCCATT
- 3′ sequencing primer CACCTTGAAGCGCATGAACT (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made bySynthetic gene
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
Stx3-mCherry was a gift from Geert van den Bogaart (Addgene plasmid # 190890 ; http://n2t.net/addgene:190890 ; RRID:Addgene_190890) -
For your References section:
Fluorescence lifetime imaging microscopy reveals rerouting of SNARE trafficking driving dendritic cell activation. Verboogen DRJ, Gonzalez Mancha N, Ter Beest M, van den Bogaart G. Elife. 2017 May 19;6. pii: e23525. doi: 10.7554/eLife.23525. 10.7554/eLife.23525 PubMed 28524818
