pCDNA3.1_WiChR_TS_mScarlet_ER
(Plasmid #195190)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 195190 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 195190-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 195190-D100 100 μg of DNA in Tris buffer $585
Add to Cart

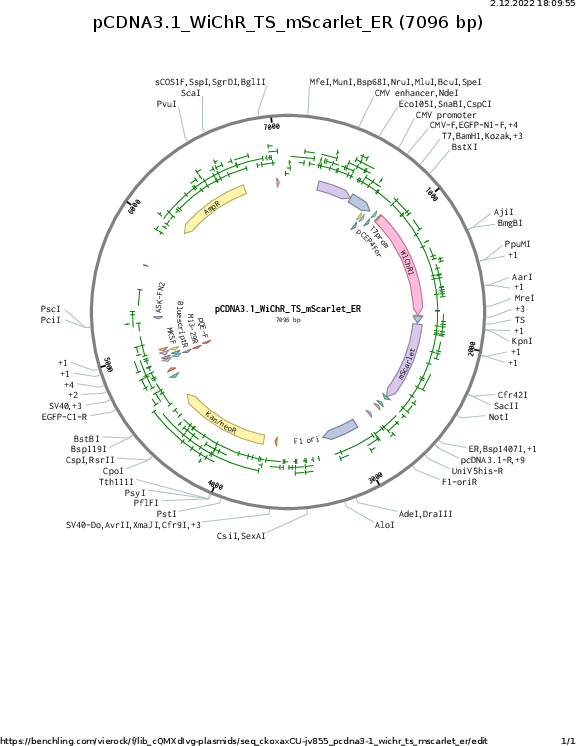

Backbone

  • Vector backbone
    pCDNA3.1
  • Backbone size w/o insert (bp) 5366
  • Total vector size (bp) 7096
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Wobblia lunata inhibitory Channelrhodopsin
  • Alt name
    WiChR
  • Alt name
    WlChR1
  • Alt name
    WlKCR1
  • Species
    Synthetic; Wobblia lunata
  • Insert Size (bp)
    933
  • GenBank ID
    OP710241.1 UZU83954.1
  • Promoter CMV
  • Tags / Fusion Proteins
    • Kir2.1 trafficking motif (C terminal on insert)
    • mScarlet (C terminal on insert)
    • ER-export sequence (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
  • 3′ sequencing primer AGCCTCGACTGTGCCTTCTA
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCDNA3.1_WiChR_TS_mScarlet_ER was a gift from Peter Hegemann & Johannes Vierock (Addgene plasmid # 195190 ; http://n2t.net/addgene:195190 ; RRID:Addgene_195190)

  • For your References section:

    WiChR, a highly potassium selective channelrhodopsin for low-light one- and two-photon inhibition of excitable cells. Vierock J, Peter E, Grimm C, Rozenberg A, Chen IW, Tillert L, Castro Scalise AG, Casini M, Augustin S, Tanese D, Forget BC, Peyronnet R, Schneider-Warme F, Emiliani V, Beja O, Hegemann P. Sci Adv. 2022 Nov 16:eadd7729. 10.1126/sciadv.add7729 PubMed 36383037
