pKrox24(2xD-E)dTomato
(Plasmid
#200110)
-
PurposeFluorescent reporter for in cell monitoring of receptor tyrosine kinase-MAP ERK pathway activity
-
Depositing Lab
-

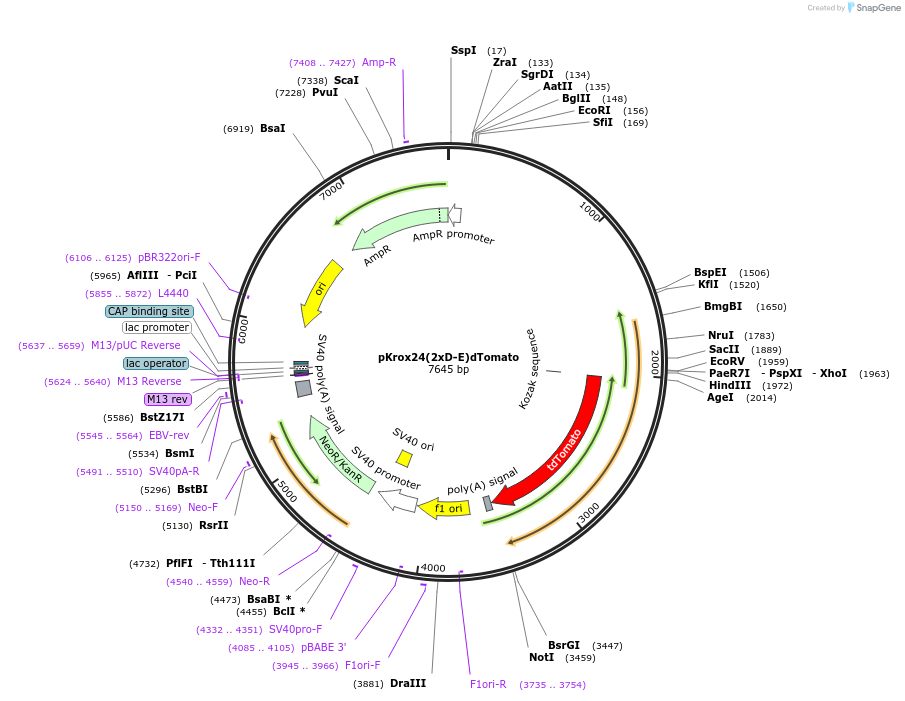

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 200110 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepCLuc-Basic2
-
Backbone manufacturerNew England Biolabs
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemodified EGR1 promoter
-
SpeciesSynthetic
-
Mutationhighly modified sequence
- Promoter 2 copies of D-E element, no other promoter elements
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site unknown (unknown if destroyed)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pKrox24(2xD-E)dTomato was a gift from Pavel Krejčí (Addgene plasmid # 200110 ; http://n2t.net/addgene:200110 ; RRID:Addgene_200110) -
For your References section:
One reporter for in-cell activity profiling of majority of protein kinase oncogenes. Gudernova I, Foldynova-Trantirkova S, Ghannamova BE, Fafilek B, Varecha M, Balek L, Hruba E, Jonatova L, Jelinkova I, Kunova Bosakova M, Trantirek L, Mayer J, Krejci P. Elife. 2017 Feb 15;6. pii: e21536. doi: 10.7554/eLife.21536. 10.7554/eLife.21536 PubMed 28199182
