Vh-HA-2xFRB
(Plasmid #20224)

Full plasmid sequence is not available for this item.

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 20224 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pcDNA3.1(+)
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5400
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    2xFRB
  • Alt name
    mTOR domain
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    795
  • Mutation
    One copy of FRB has a T2098L mutation
  • Entrez Gene
    MTOR (a.k.a. FRAP, FRAP1, FRAP2, RAFT1, RAPT1, SKS)
  • Tags / Fusion Proteins
    • Vh (N terminal on insert)
    • HA (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site KpnI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer BGH reverse
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

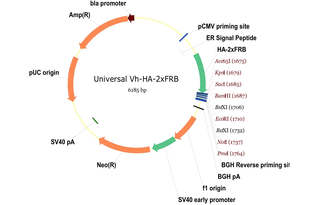

Depositor Comments

murine VH chain signal peptide followed by a HA
tag and two repeats of FRB

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Vh-HA-2xFRB was a gift from Carolyn Bertozzi (Addgene plasmid # 20224 ; http://n2t.net/addgene:20224 ; RRID:Addgene_20224)
  • For your References section:

    Conditional glycosylation in eukaryotic cells using a biocompatible chemical inducer of dimerization. Czlapinski JL, Schelle MW, Miller LW, Laughlin ST, Kohler JJ, Cornish VW, Bertozzi CR. J Am Chem Soc. 2008 Oct 8. 130(40):13186-7. 10.1021/ja8037728 PubMed 18788807
