AAV2_CAG_oROS-G_LF(C199S)
(Plasmid
#216116)
-
PurposeEncodes the loss-of-function mutation C199S of the genetically encoded, green fluorescent peroxide sensor oROS-G in AAV viral vectors.
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 216116 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backboneAAV
- Total vector size (bp) 6138
-
Vector typeMammalian Expression, AAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature30°C
-
Growth Strain(s)NEB Stable
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameoROS-G_LF(C199S)
- Promoter CAG
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer atgaagacgatcatcgccctgagc (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://pubmed.ncbi.nlm.nih.gov/38352381/ for bioRxiv preprint.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
AAV2_CAG_oROS-G_LF(C199S) was a gift from Andre Berndt (Addgene plasmid # 216116 ; http://n2t.net/addgene:216116 ; RRID:Addgene_216116) -
For your References section:
Structure-guided engineering of a fast genetically encoded sensor for real-time H2O2 monitoring. Lee J.D., Won. W., Kimball K., Wang Y., Yeboah F., Evitts K.M., Neiswanger C., Schattauer S., Rappleye M., Bremner S.B., Chun C., Smith N., Mack D.L., Young J.E., Lee C.J., Chavkin C., Berndt A.. bioRxiv 2024.01.31.578117 10.1101/2024.01.31.578117

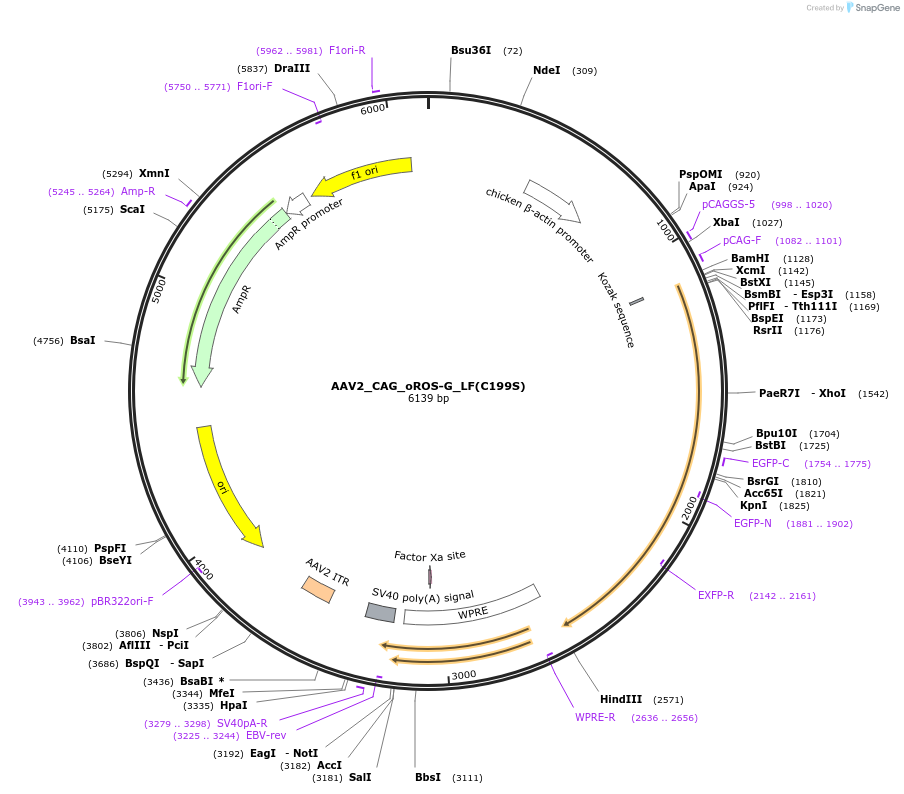

Map uploaded by the depositor.
