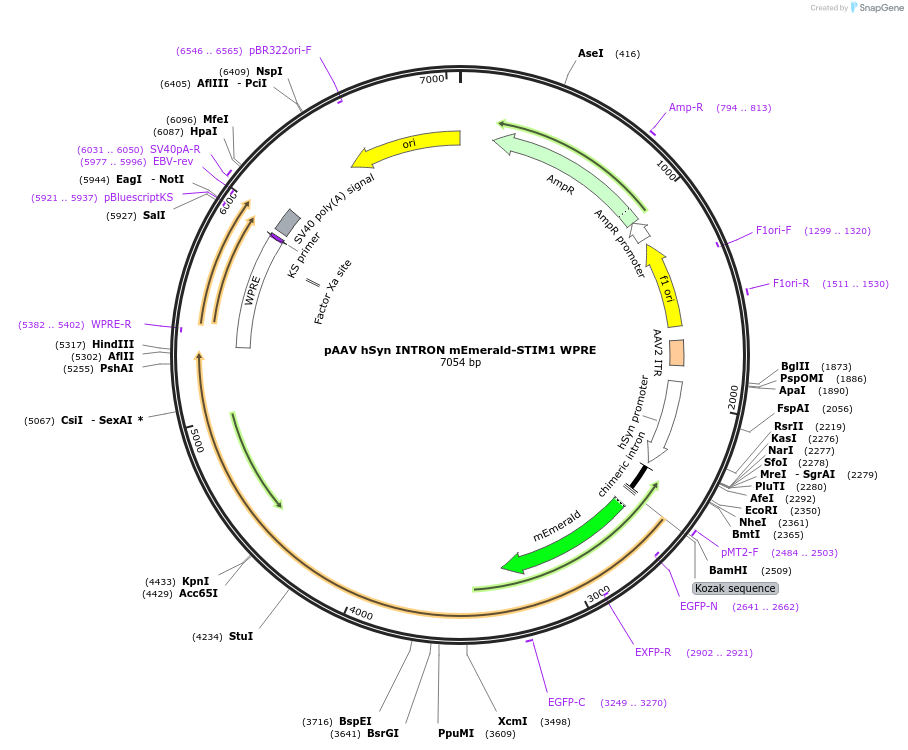

pAAV hSyn INTRON mEmerald-STIM1 WPRE
(Plasmid #236234)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 236234 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pAAV Syn intron Psam4GlyR m3m4 HA
  • Backbone manufacturer
    Scott Sternson (Addgene plasmid # 196041)
  • Vector type
    AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mEmerald-Stim1
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    2793
  • Entrez Gene
    Stim1 (a.k.a. SIM)
  • Promoter human Synapsin 1
  • Tag / Fusion Protein
    • mEmerald (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (unknown if destroyed)
  • 3′ cloning site HindIII (unknown if destroyed)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV hSyn INTRON mEmerald-STIM1 WPRE was a gift from Jennifer Lippincott-Schwartz (Addgene plasmid # 236234 ; http://n2t.net/addgene:236234 ; RRID:Addgene_236234)

  • For your References section:

    Periodic ER-plasma membrane junctions support long-range Ca(2+) signal integration in dendrites. Benedetti L, Fan R, Weigel AV, Moore AS, Houlihan PR, Kittisopikul M, Park G, Petruncio A, Hubbard PM, Pang S, Xu CS, Hess HF, Saalfeld S, Rangaraju V, Clapham DE, De Camilli P, Ryan TA, Lippincott-Schwartz J. Cell. 2025 Jan 23;188(2):484-500.e22. doi: 10.1016/j.cell.2024.11.029. Epub 2024 Dec 20. 10.1016/j.cell.2024.11.029 PubMed 39708809
