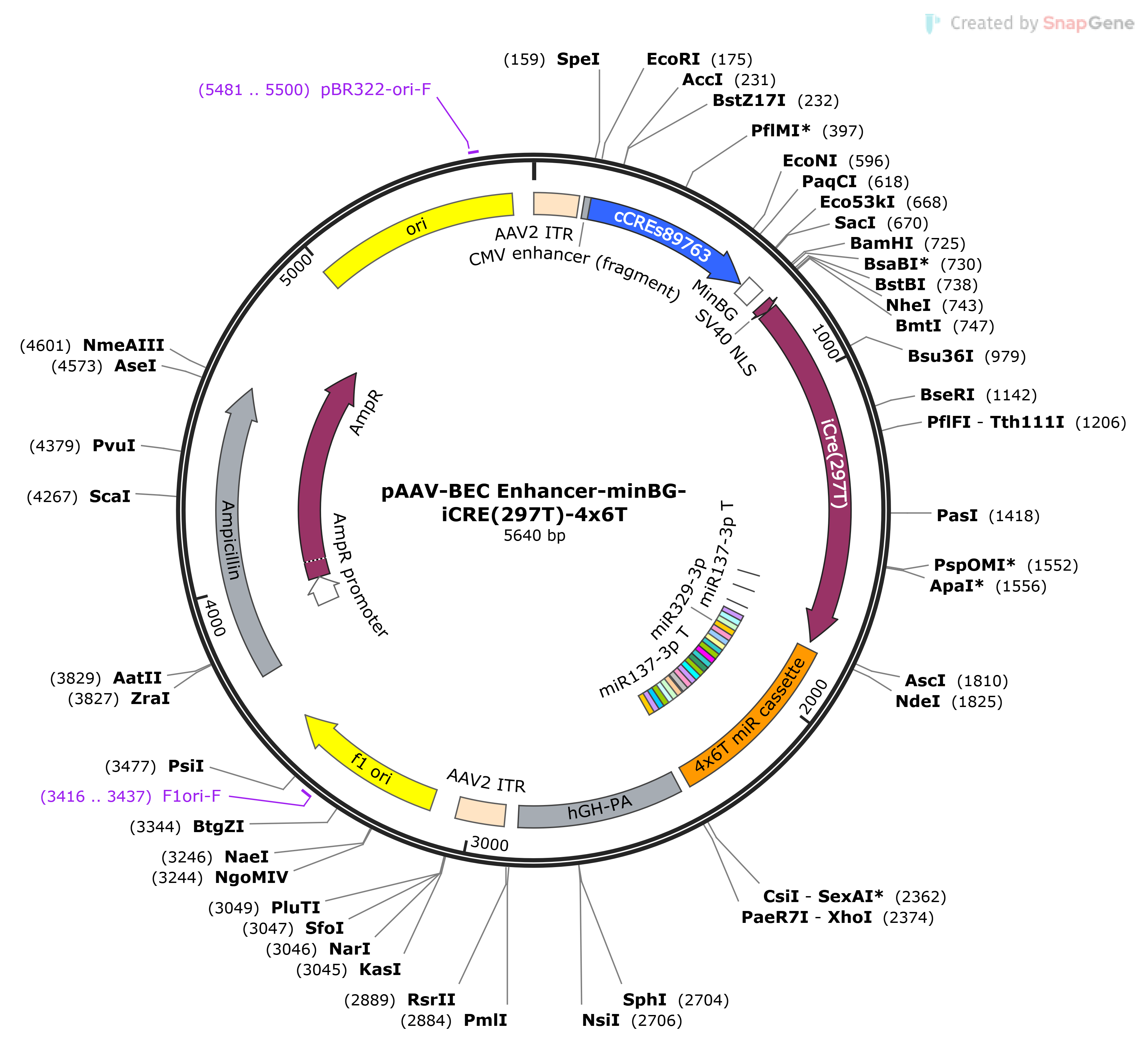

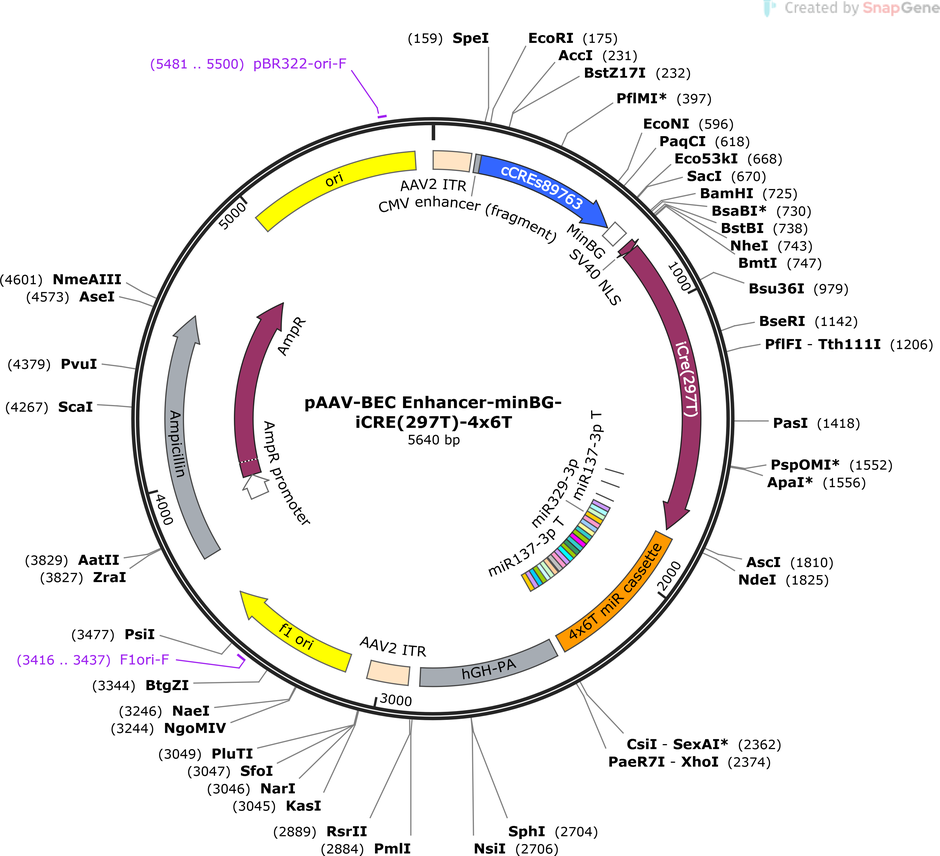

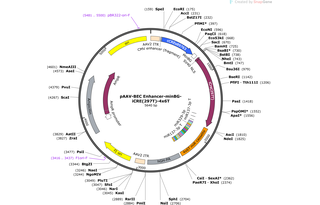

pAAV-BEC enhancer-minBG-iCre(R279T)-4x6T
(Plasmid
#236727)
-
PurposeBrain Endothelial Cell Enhancer with 4x6T miRNA targeting cassette For use in combination with Cre-dependent transgenic mouse lines or co-infection with Cre dependent viral vectors.
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 236727 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $89 |
Backbone
-
Vector backbonepAAV2
-
Backbone manufacturerAAVnergene
- Backbone size w/o insert (bp) 2896
- Total vector size (bp) 5640
-
Vector typeAAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert 1
-
Gene/Insert namecis-regulatory elements 89763
-
Alt namecCREs89763
-
SpeciesM. musculus (mouse)
-
Insert Size (bp)501
-
GenBank IDAL604023.12
Gene/Insert 2
-
Gene/Insert nameiCre(R297T)
-
SpeciesSynthetic
-
Insert Size (bp)1029
-
MutationR297T
Gene/Insert 3
-
Gene/Insert name4x6T miRNA targeting cassette
-
SpeciesSynthetic
-
Insert Size (bp)529
Resource Information
-
Supplemental Documents
-
A portion of this plasmid was derived from a plasmid made byiCre from Jonathan Ting, Allen Insitute (Addgene 164450); 4x6T from Stanley Thomas Carmichael (Addgene 196411)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAAV-BEC enhancer-minBG-iCre(R279T)-4x6T was a gift from Xiangmin Xu (Addgene plasmid # 236727 ; http://n2t.net/addgene:236727 ; RRID:Addgene_236727) -
For your References section:
Specific targeting of brain endothelial cells using enhancer AAV vectors. Velazquez-Rivera E, Dey O, Kim NS, Cao W, Ye Q, Gao P, Thai A, Nguyen JK, Zhang H, Ting JT, Gopi M, Ren B, Holmes TC, Xu X. Neuron. 2025 May 21;113(10):1562-1578.e6. doi: 10.1016/j.neuron.2025.03.031. 10.1016/j.neuron.2025.03.031 PubMed 40403707
