pAAV-EF1a-DIO-Varnam2-WPRE
(Plasmid
#240055)
-
PurposeCre dependent Red fluorescent, negative response-polarity voltage indicator for mammalian expression
-
Depositing Lab
-

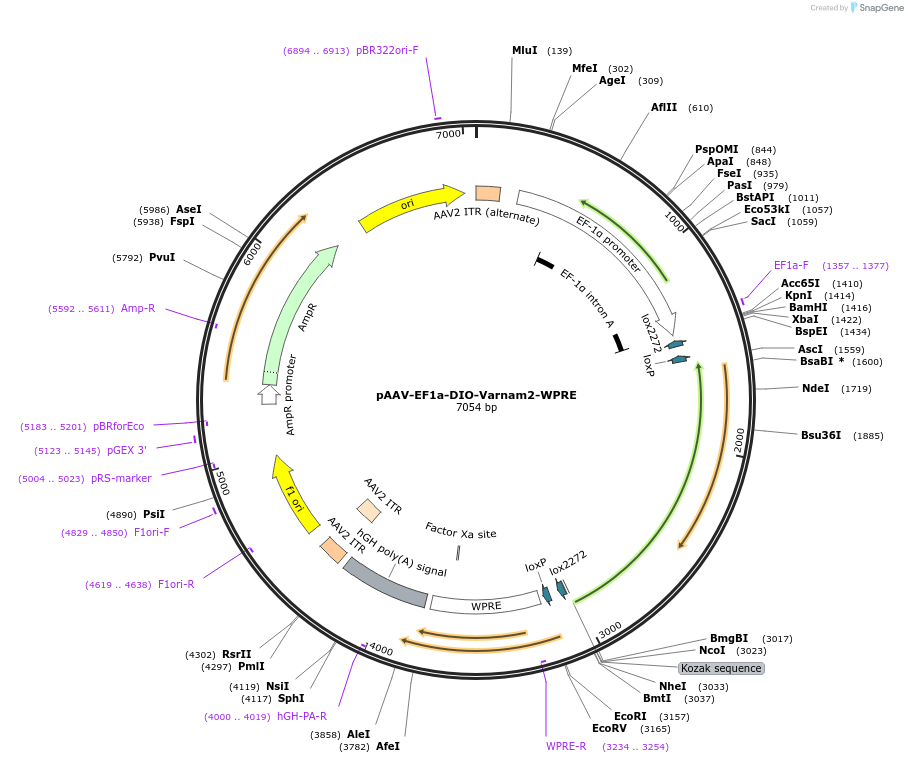

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 240055 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backboneAAV
-
Vector typeAAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameVARNAM2
-
SpeciesSynthetic
- Promoter Ef1a
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NheI (not destroyed)
- 3′ cloning site AscI (not destroyed)
- 5′ sequencing primer Unknown (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made byAddgene Plasmid #11527
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAAV-EF1a-DIO-Varnam2-WPRE was a gift from Mark Schnitzer (Addgene plasmid # 240055 ; http://n2t.net/addgene:240055 ; RRID:Addgene_240055) -
For your References section:
Imaging high-frequency voltage dynamics in multiple neuron classes of behaving mammals. Haziza S, Chrapkiewicz R, Zhang Y, Kruzhilin V, Li J, Li J, Delamare G, Swanson R, Buzsaki G, Kannan M, Vasan G, Lin MZ, Zeng H, Daigle TL, Schnitzer MJ. Cell, 188, 1-23, August 7, 2025. doi: 10.1016/j.cell.2025.06.028 10.1016/j.cell.2025.06.028 PubMed 39185175
