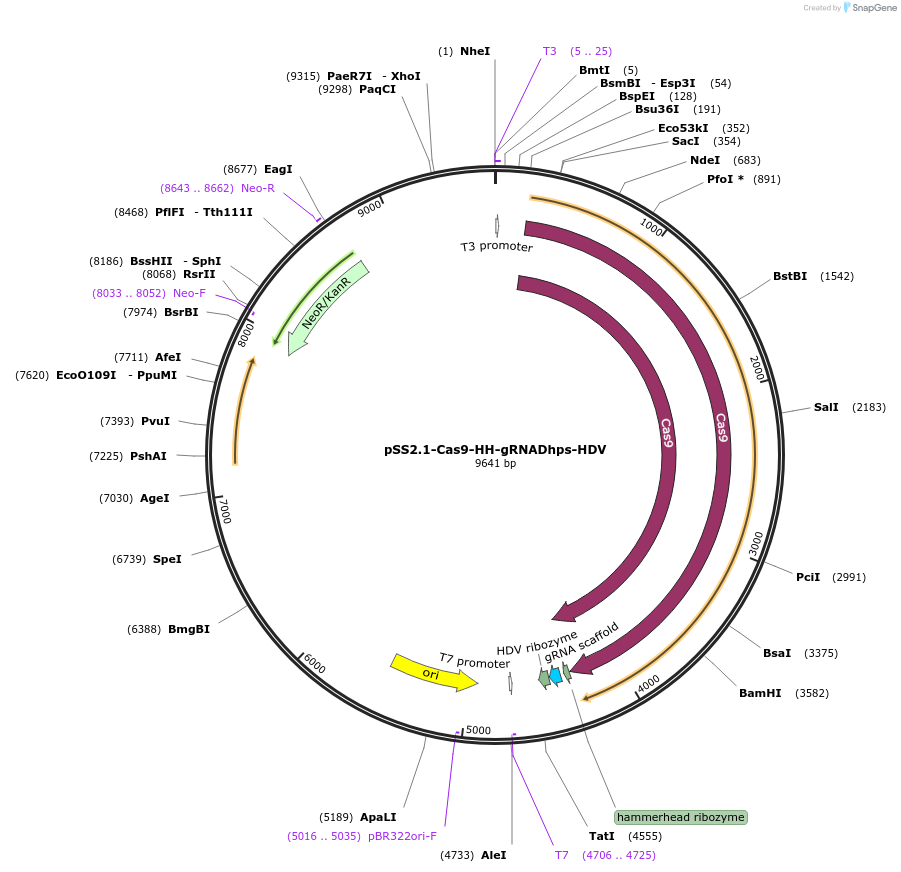

pSS2.1-Cas9-HH-gRNADhps-HDV
(Plasmid
#241015)
-
PurposeCas9 expression cassette encoding a guide RNA targeting the Dhps locus, flanked by a hammerhead (HH) ribozyme at the 5′ end and a hepatitis delta virus (HDV) ribozyme at the 3′ end
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 241015 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $89 | |
Backbone
-
Vector backbonepSS2.1
-
Backbone manufacturerSteven Sayson, Ph.D.
- Backbone size w/o insert (bp) 5320
- Total vector size (bp) 9641
-
Vector typeYeast Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert 1
-
Gene/Insert nameCas9-Hammerhead (HH) Ribozyme-gRNA(Dhps)-Hepatitis Delta Virus (HDV) Ribozyme
-
Alt nameCas9-HH-gRNA(Dhps)-HDV
-
Insert Size (bp)4321
Gene/Insert 2
-
Gene/Insert nameblasticidin-S deaminase
-
Alt nameBsd
-
Alt nameBsr
-
Insert Size (bp)423
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pSS2.1-Cas9-HH-gRNADhps-HDV was a gift from Alan Smulian (Addgene plasmid # 241015 ; http://n2t.net/addgene:241015 ; RRID:Addgene_241015) -
For your References section:
Extracellular vesicle-mediated delivery of genetic material for transformation and CRISPR/Cas9-based gene editing in Pneumocystis murina. Sayson SG, Ashbaugh A, Bauer LC, Smulian AG. mBio. 2025 Sep 23:e0182525. doi: 10.1128/mbio.01825-25. 10.1128/mbio.01825-25 PubMed 40985725
