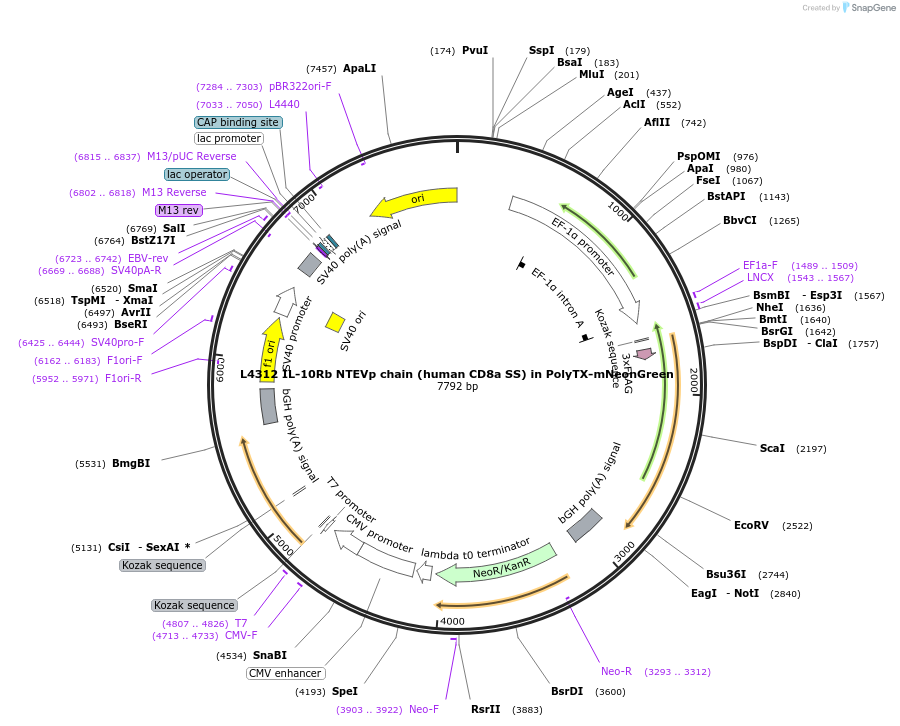

L4312 IL-10Rb NTEVp chain (human CD8a SS) in PolyTX-mNeonGreen
(Plasmid #244170)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 244170 Standard format: Plasmid sent in bacteria as agar stab 1 $89
Add to Cart

Backbone

  • Vector backbone
    pPD1054 Polytransfect L1 mNeonGreen
  • Vector type
    Mammalian Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    MESA NTEVp chain with human CD8a SS, human IL-10Rb ECD and TMD, and NTEVp (75S)
  • Species
    H. sapiens (human), Synthetic
  • Mutation
    NTEVp_75S
  • Entrez Gene
    IL10RB (a.k.a. CDW210B, CRF2-4, CRFB4, D21S58, D21S66, IL-10R2)
  • Promoter hEF1a
  • Tag / Fusion Protein
    • human CD8a signal peptide 3xFLAG (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Unknown (unknown if destroyed)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please visit https://doi.org/10.1101/2024.03.23.586421 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    L4312 IL-10Rb NTEVp chain (human CD8a SS) in PolyTX-mNeonGreen was a gift from Joshua Leonard (Addgene plasmid # 244170 ; http://n2t.net/addgene:244170 ; RRID:Addgene_244170)

  • For your References section:

    Conversion of natural cytokine receptors into orthogonal synthetic biosensors. Edelstein HI, Cosio A, Ezekiel ML, Corcoran WK, Morris AH, Leonard JN. Nat Chem Biol. 2025 Aug 22:10.1038/s41589-025-01986-1. doi: 10.1038/s41589-025-01986-1. 10.1038/s41589-025-01986-1 PubMed 40846994
