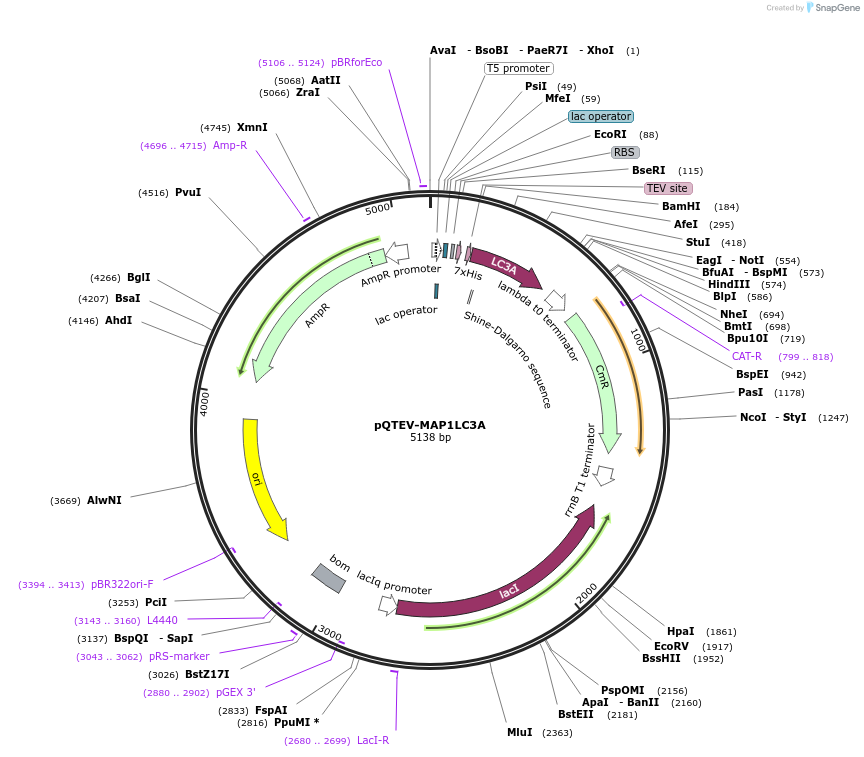

pQTEV-MAP1LC3A
(Plasmid #34824)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 34824 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Rosetta
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    microtubule-associated protein 1 light chain 3 alpha
  • Alt name
    MAP1LC3A
  • Alt name
    PSFEp250E106
  • Alt name
    DKFZp761L0515
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    438
  • GenBank ID
    CAD38714 DQ000584
  • Entrez Gene
    MAP1LC3A (a.k.a. ATG8E, LC3, LC3A, MAP1ALC3, MAP1BLC3)
  • Tags / Fusion Proteins
    • His (N terminal on backbone)
    • TEV (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer TGAGCGGATAACAATTTCACACAG
  • 3′ sequencing primer GGCAACCGAGCGTTCTGAAC
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses

Depositor Comments

The vector pQTEV is derived from Qiagen pQE-2 and contains an inactive chloramphenicol resistance gene sequence.

The Rosetta bacterial strain contains an additional plasmid. The second plasmid, pRARE, provides rare tRNAs for overexpression of recombinant proteins. It has 4694 bp and is chloramphenicol resistence.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pQTEV-MAP1LC3A was a gift from Konrad Buessow (Addgene plasmid # 34824 ; http://n2t.net/addgene:34824 ; RRID:Addgene_34824)
  • For your References section:

    Structural genomics of human proteins--target selection and generation of a public catalogue of expression clones. Bussow K, Scheich C, Sievert V, Harttig U, Schultz J, Simon B, Bork P, Lehrach H, Heinemann U. Microb Cell Fact. 2005 Jul 5. 4():21. 10.1186/1475-2859-4-21 PubMed 15998469
