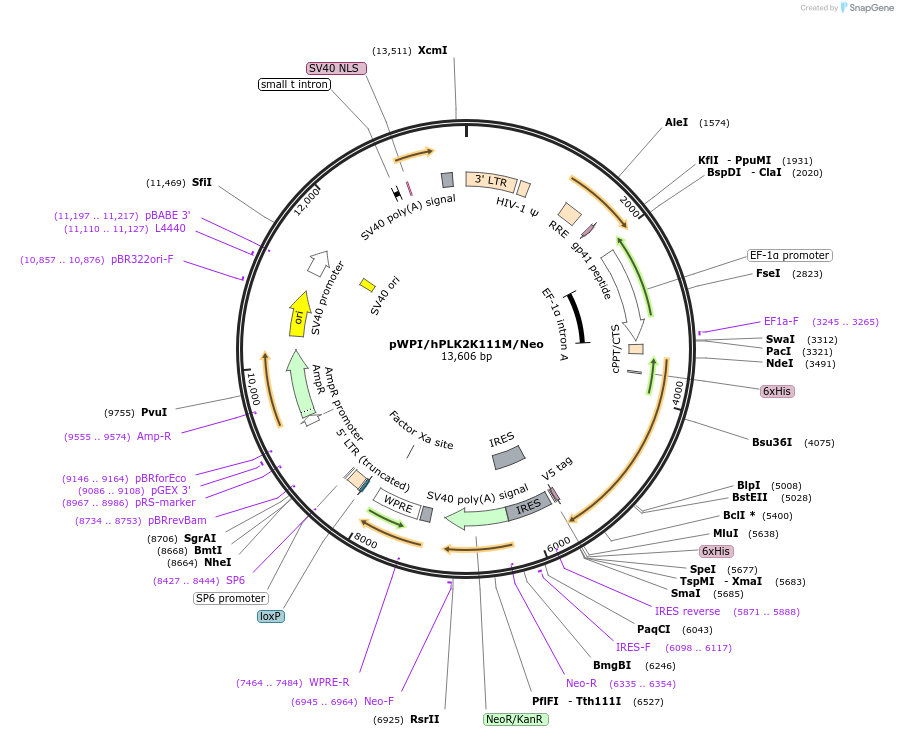

pWPI/hPLK2K111M/Neo
(Plasmid #35386)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 35386 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pWPI/Neomycin
  • Backbone manufacturer
    Didier Trono
  • Backbone size w/o insert (bp) 11437
  • Vector type
    Mammalian Expression, Lentiviral
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Stbl3
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    hPLK2 K111M
  • Alt name
    Snk/Plk2
  • Species
    H. sapiens (human)
  • Mutation
    K111M
  • Entrez Gene
    PLK2 (a.k.a. SNK, hPlk2, hSNK)
  • Promoter EF1-alpha
  • Tags / Fusion Proteins
    • V5 epitope and Polyhistidine tag (C terminal on insert)
    • EMCV IRES-Neomycin cassette (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer EF-1a-F
  • 3′ sequencing primer EGFP-N
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The backbone of this bicistronic lentiviral vector was originally created by Dr. Didier Trono lab (pWPI, Plasmid # 12254), and then modified by Robert Strome using Neomycin to replace EGFP and adding several multiple clone sites. The MCS includes Swa I, Nde I, BamH I, Spe I, Xma I and Sma I (see sequence). The hPlk2WT cDNA was inserted with BamH I site, and can be replaced by any other gene with this site. This vector allows the simultaneous expression of hPlk2K111M and Neomycin to facilitate establishing stable mammalian transgene cell lines.
Please note that the full sequence for this plasmid is approximated and not fully verified. For further cloning strategies, please contact with Dr. Anurag Tandon.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pWPI/hPLK2K111M/Neo was a gift from Anurag Tandon (Addgene plasmid # 35386 ; http://n2t.net/addgene:35386 ; RRID:Addgene_35386)
  • For your References section:

    Effect of Ser-129 phosphorylation on interaction of alpha-synuclein with synaptic and cellular membranes. Visanji NP, Wislet-Gendebien S, Oschipok LW, Zhang G, Aubert I, Fraser PE, Tandon A. J Biol Chem. 2011 Oct 14;286(41):35863-73. Epub 2011 Aug 17. 10.1074/jbc.M111.253450 PubMed 21849493
