|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||38189||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.
- Backbone size w/o insert (bp) 4805
- Total vector size (bp) 9050
Vector typeMammalian Expression
Growth in Bacteria
Copy numberLow Copy
SpeciesH. sapiens (human)
Insert Size (bp)4300
Entrez GeneBCR (a.k.a. ALL, BCR1, CML, D22S11, D22S662, PHL)
- Promoter CMV
/ Fusion Protein
- HA (N terminal on insert)
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer CMV-F
- 3′ sequencing primer pBABE3 (Common Sequencing Primers)
Constructed by Young Jin Cho.
A human BCR cDNA was inserted into pKH3 (Addgene plasmid #12555; obtained from Martin Schwartz) digested with BamHI x EcoRI in a three-way ligation (1.7 kb BamHI-SstI + 2.6 kb SstI-EcoRI). The 1.7 kb BamHI-SstI fragment was isolated from Bcr in pAcG2T (AddGene plasmid #38163). The 5’ sequence is
GGA TCC CCC GGG CTG CAG GAA TTC GAT GGC CGC GCC ATG-start BCR.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:HA-tagged Bcr was a gift from Nora Heisterkamp (Addgene plasmid # 38189 ; http://n2t.net/addgene:38189 ; RRID:Addgene_38189)

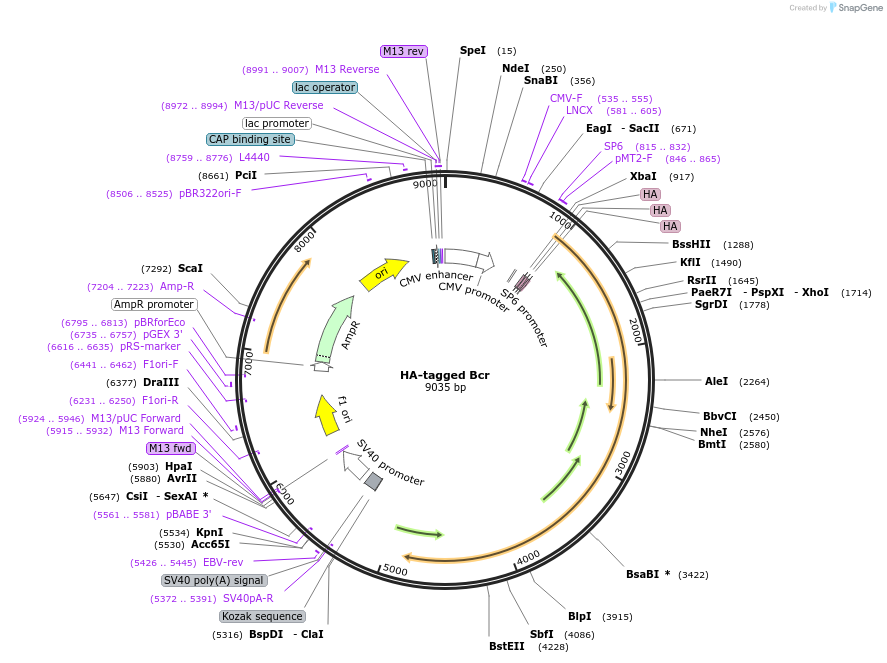

Map uploaded by the depositor.
