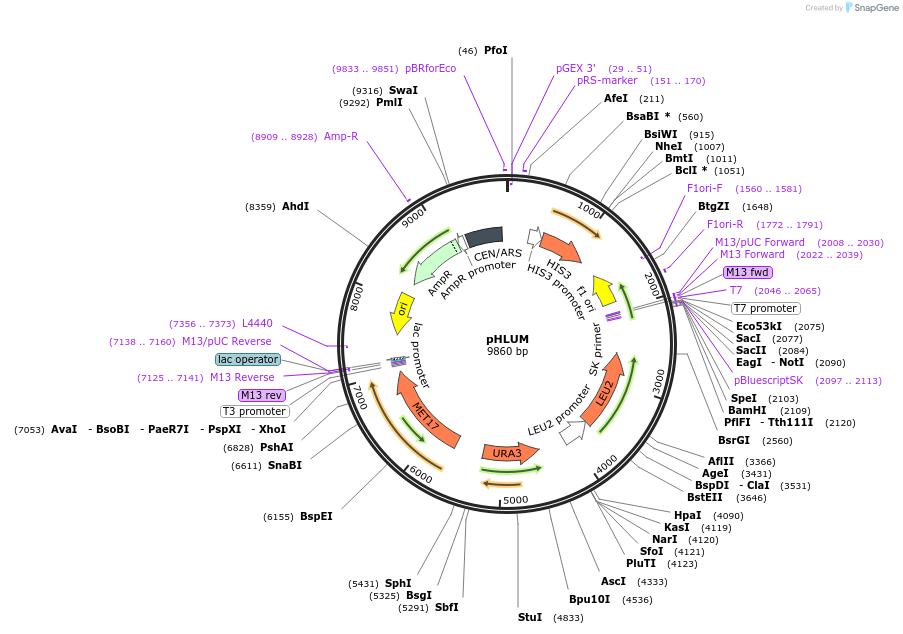

pHLUM
(Plasmid #40276)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 40276 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pRS313
  • Backbone manufacturer
    ATCC, Number: 77142
  • Backbone size w/o insert (bp) 4967
  • Total vector size (bp) 9860
  • Vector type
    Yeast Expression
  • Selectable markers
    LEU2, URA3, HIS3 ; MET15/17

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert 1

  • Gene/Insert name
    LEU2
  • Alt name
    YCL018W
  • Species
    S. cerevisiae (budding yeast)
  • Insert Size (bp)
    2116
  • GenBank ID
    NM_001178665.1
  • Entrez Gene
    LEU2 (a.k.a. YCL018W)
  • Promoter endogenous LEU2

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site AscI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer AACAAAGGAACCTAGAGGCC
  • 3′ sequencing primer TAATACGACTCACTATAGGG
  • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    URA3
  • Alt name
    YEL021W
  • Species
    S. cerevisiae (budding yeast)
  • Insert Size (bp)
    1096
  • GenBank ID
    NM_001178836
  • Entrez Gene
    URA3 (a.k.a. YEL021W)
  • Promoter endogenous URA3

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site SphI (not destroyed)
  • 3′ cloning site AscI (not destroyed)
  • 5′ sequencing primer GATTCGGTAATCTCCGAAC
  • 3′ sequencing primer GGCCTCTAGGTTCCTTTGTT
  • (Common Sequencing Primers)

Gene/Insert 3

  • Gene/Insert name
    MET15/17
  • Alt name
    YLR303W
  • Species
    S. cerevisiae (budding yeast)
  • Insert Size (bp)
    1620
  • GenBank ID
    NM_001182191
  • Entrez Gene
    MET17 (a.k.a. YLR303W, MET15, MET25)
  • Promoter endogenous MET15/17

Cloning Information for Gene/Insert 3

  • Cloning method Restriction Enzyme
  • 5′ cloning site SphI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer ATCGCATGCGCCATCCTCATGAAAACTGT
  • 3′ sequencing primer TGCTTCCGGCTCCTATGTTGTG
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    genes were amplified by PCR from plasmids pRS425 (LEU2, ATCC Number:77106), p426GPD (URA3, ATCC Number:87361) and pRS411 (MET15/17, ATCC Number:87474)
  • Articles Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHLUM was a gift from Markus Ralser (Addgene plasmid # 40276 ; http://n2t.net/addgene:40276 ; RRID:Addgene_40276)
  • For your References section:

    A prototrophic deletion mutant collection for yeast metabolomics and systems biology. Mulleder M, Capuano F, Pir P, Christen S, Sauer U, Oliver SG, Ralser M. Nat Biotechnol. 2012 Dec 7;30(12):1176-8. doi: 10.1038/nbt.2442. 10.1038/nbt.2442 PubMed 23222782
