pX210-U6-Pre-crRNA-Backbone-EF1a-hSpCas9
(Plasmid #41861)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 41861 Standard format: Plasmid sent in bacteria as agar stab 1 $89

Backbone

  • Vector backbone
    pLenti
  • Backbone size w/o insert (bp) 7732
  • Total vector size (bp) 13793
  • Vector type
    Mammalian Expression, Lentiviral, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Stbl3
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    U6-ChimericRNA-Backbone-EF1a-hSpCas9

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site None (destroyed during cloning)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer HumanU6-Forward
  • 3′ sequencing primer WPRE-Reverse
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

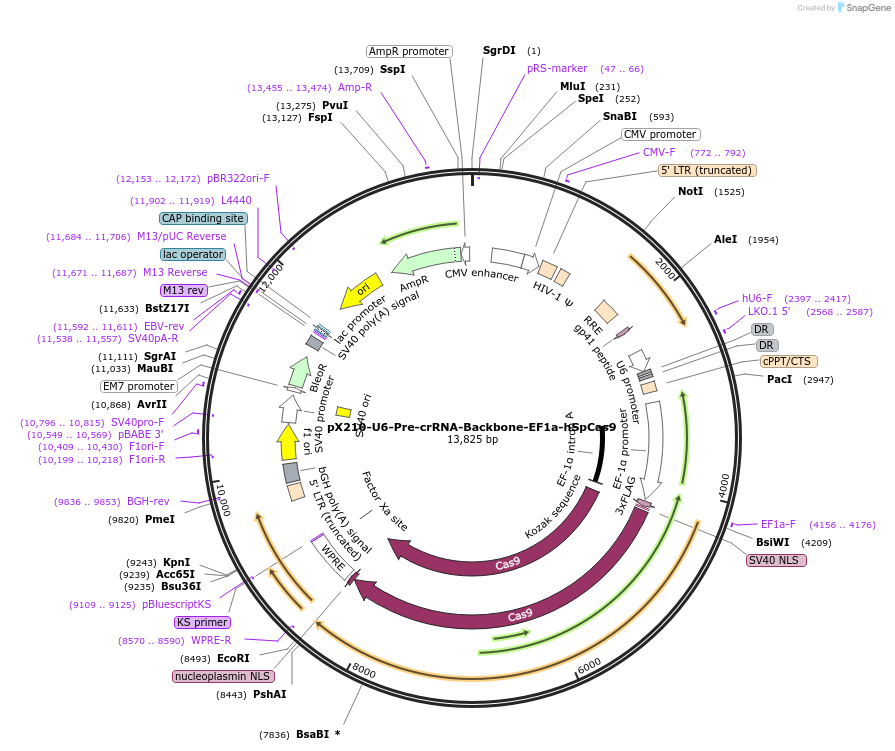

Detailed vector maps and feature list can be viewed and downloaded via the EVERYVECTOR website, accessible with the following link:
http://everyvector.com/sequences/show/25911.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pX210-U6-Pre-crRNA-Backbone-EF1a-hSpCas9 was a gift from Feng Zhang (Addgene plasmid # 41861)

  • For your References section:

    Multiplex Genome Engineering Using CRISPR/Cas Systems. Cong L, Ran FA, Cox D, Lin S, Barretto R, Habib N, Hsu PD, Wu X, Jiang W, Marraffini LA, Zhang F. Science. 2013 Jan 3. 10.1126/science.1231143 PubMed 23287718
