PurposepSV40mod-luc2 donor plasmid for MPRA library construction
-
Depositing Lab
-
Depositing OrganizationBroad Institute
Located in United States of America -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 49354 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 49354-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 49354-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepUC57
-
Backbone manufacturerGenscript
- Backbone size w/o insert (bp) 2693
- Total vector size (bp) 4477
-
Vector typeLuciferase
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameluc2
-
Alt nameFirefly luciferase
-
SpeciesSynthetic
-
Insert Size (bp)4663
- Promoter SV40mod
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site KpnI (not destroyed)
- 3′ cloning site XbaI (not destroyed)
- 5′ sequencing primer GTAAAACGACGGCCAGTG
- 3′ sequencing primer GGAAACAGCTATGACCATG
- (Common Sequencing Primers)
Resource Information
-
A portion of this plasmid was derived from a plasmid made bySynthesized by Genscript
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
SV40mod promoter is an SV40 early promoter modified to remove an internal SfiI site.
DNA (Catalog # 49354-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 49354-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pMPRAdonor3 was a gift from Tarjei Mikkelsen (Addgene plasmid # 49354 ; http://n2t.net/addgene:49354 ; RRID:Addgene_49354) -
For your References section:
Massively parallel reporter assays in cultured Mammalian cells. Melnikov A, Zhang X, Rogov P, Wang L, Mikkelsen TS. J Vis Exp. 2014 Aug 17;(90). doi: 10.3791/51719. 10.3791/51719 PubMed 25177895

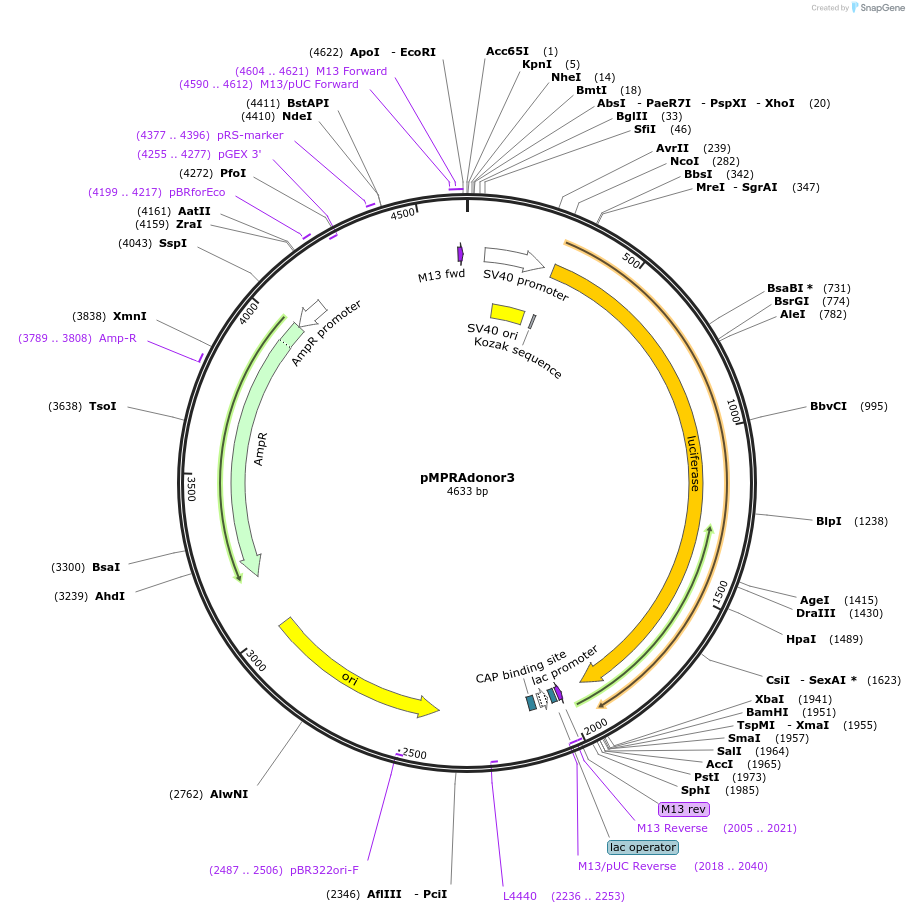

Map uploaded by the depositor.
