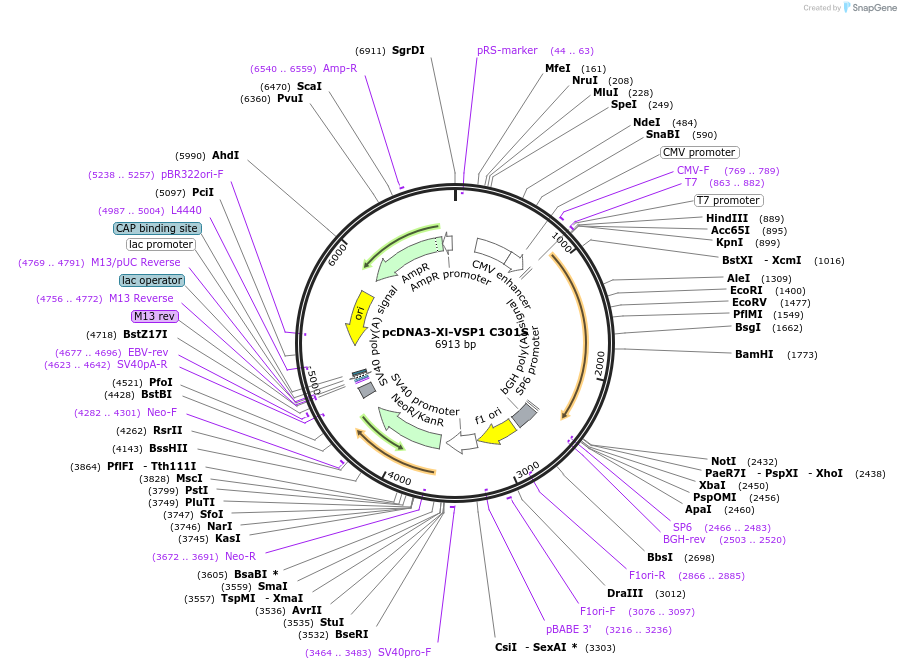

pcDNA3-Xl-VSP1 C301S
(Plasmid #51882)


Item Catalog # Description Quantity Price (USD)
Plasmid 51882 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
  • Vector type
    Mammalian Expression ; Xenopus oocyte expression

Growth in Bacteria

  • Bacterial Resistance(s)
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy


  • Gene/Insert name
    VSP1 C301S
  • Alt name
  • Alt name
    Voltage Sensitive Phosphatase 1
  • Species
    X. laevis (frog)
  • Mutation
    C301S, catalytically-inactive mutant of Xl-VSP1
  • Entrez Gene
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site KpnI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer BGH Reverse
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3-Xl-VSP1 C301S was a gift from Laurinda Jaffe (Addgene plasmid # 51882 ; ; RRID:Addgene_51882)
  • For your References section:

    Voltage sensitive phosphoinositide phosphatases of Xenopus: their tissue distribution and voltage dependence. Ratzan WJ, Evsikov AV, Okamura Y, Jaffe LA. J Cell Physiol. 2011 Nov;226(11):2740-6. doi: 10.1002/jcp.22854. 10.1002/jcp.22854 PubMed 21618529
