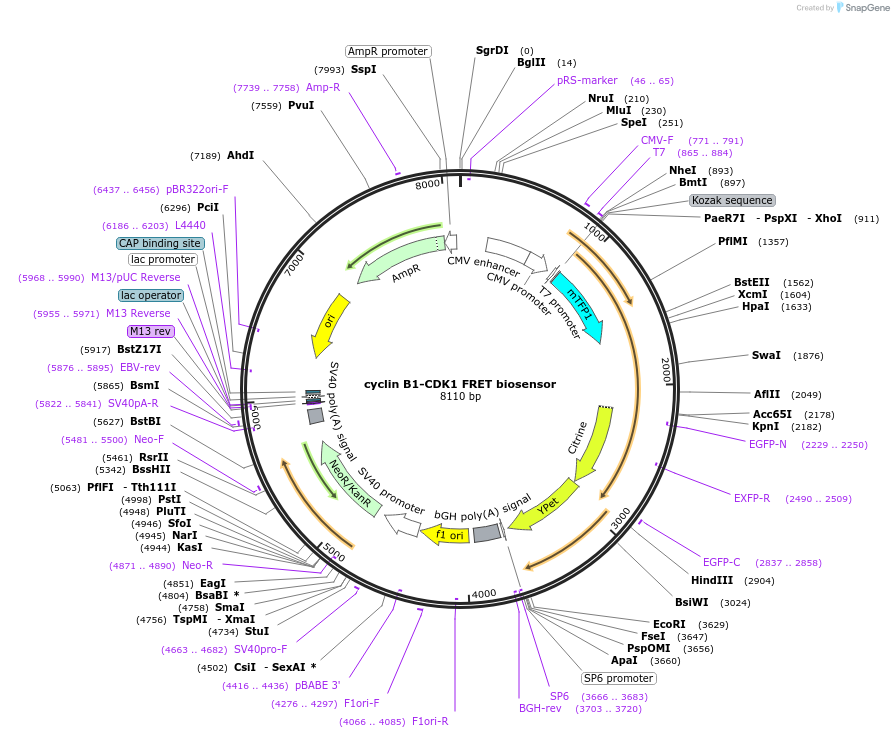

cyclin B1-CDK1 FRET biosensor
(Plasmid #52097)


Item Catalog # Description Quantity Price (USD)
Plasmid 52097 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone size w/o insert (bp) 5500
  • Total vector size (bp) 7500
  • Modifications to backbone
    Kozac sequence has been added before insert gene and XhoI restriction site. The reading frame of XhoI site has also been modified.
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy


  • Gene/Insert name
    CDK1 biosensor
  • Alt name
  • Species
    Synthetic; synthetic construct
  • Insert Size (bp)
  • GenBank ID
  • Promoter CMV
  • Tag / Fusion Protein
    • Kozac sequence (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer TAATACGACTCACTATAGGG
  • 3′ sequencing primer TAGAAGGCACAGTCGAGG
  • (Common Sequencing Primers)

Terms and Licenses

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

A FRET-based biosensors for cyclin dependent kinase 1 (CDK1) in complex with cyclin B1, with improved ratio change. It is for monitoring cyclin B1-CDK1 kinase activity in live cells. Please note that Addgene's quality control sequence shows that there is a Q to M mutation in the sensor. The mutations should not affect plasmid function.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    cyclin B1-CDK1 FRET biosensor was a gift from Robert Campbell (Addgene plasmid # 52097)
  • For your References section:

    Optimization of a genetically encoded biosensor for cyclin B1-cyclin dependent kinase 1. Belal AS, Sell BR, Hoi H, Davidson MW, Campbell RE. Mol Biosyst. 2014 Feb;10(2):191-5. doi: 10.1039/c3mb70402e. 10.1039/c3mb70402e PubMed 24281384
