Purpose(Empty Backbone) sgRNA expression construction in a 3rd generation lentiviral backbone
-
Depositing Lab
-
Publication
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 53121 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepLL3.7, Addgene plasmid #11795
-
Backbone manufacturerLuk Parijs Lab
-
Modifications to backboneThis was constructed by substituting its original U6 promoter in pLL3.7 for the human U6 promoter, ccdB cassette and sgRNA scaffold.
-
Vector typeMammalian Expression, Lentiviral, CRISPR
- Promoter U6
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol and Ampicillin, 25 & 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)ccdB Survival
-
Copy numberHigh Copy
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer hU6-F (Common Sequencing Primers)
Resource Information
-
Addgene Notes
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
A CMV-EGFP reporter cassette is included in the vector to monitor expression.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pLenti-sgRNA-Lib was a gift from Wensheng Wei (Addgene plasmid # 53121 ; http://n2t.net/addgene:53121 ; RRID:Addgene_53121) -
For your References section:
High-throughput screening of a CRISPR/Cas9 library for functional genomics in human cells. Zhou Y, Zhu S, Cai C, Yuan P, Li C, Huang Y, Wei W. Nature. 2014 Apr 9. doi: 10.1038/nature13166. 10.1038/nature13166 PubMed 24717434

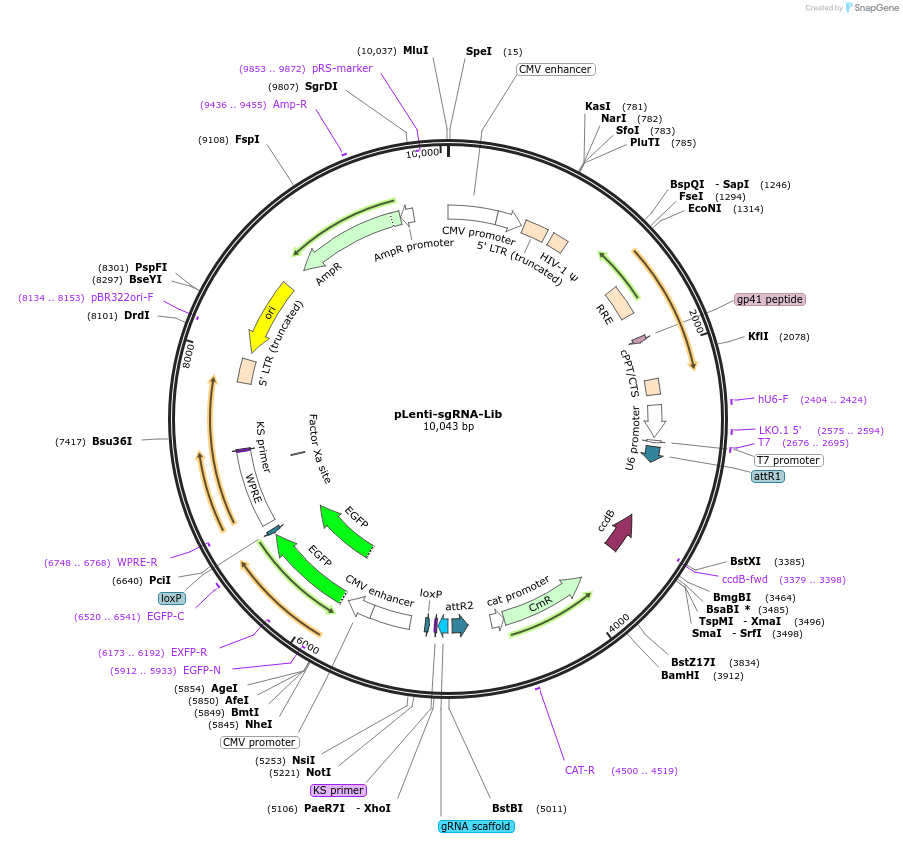

Map uploaded by the depositor.
