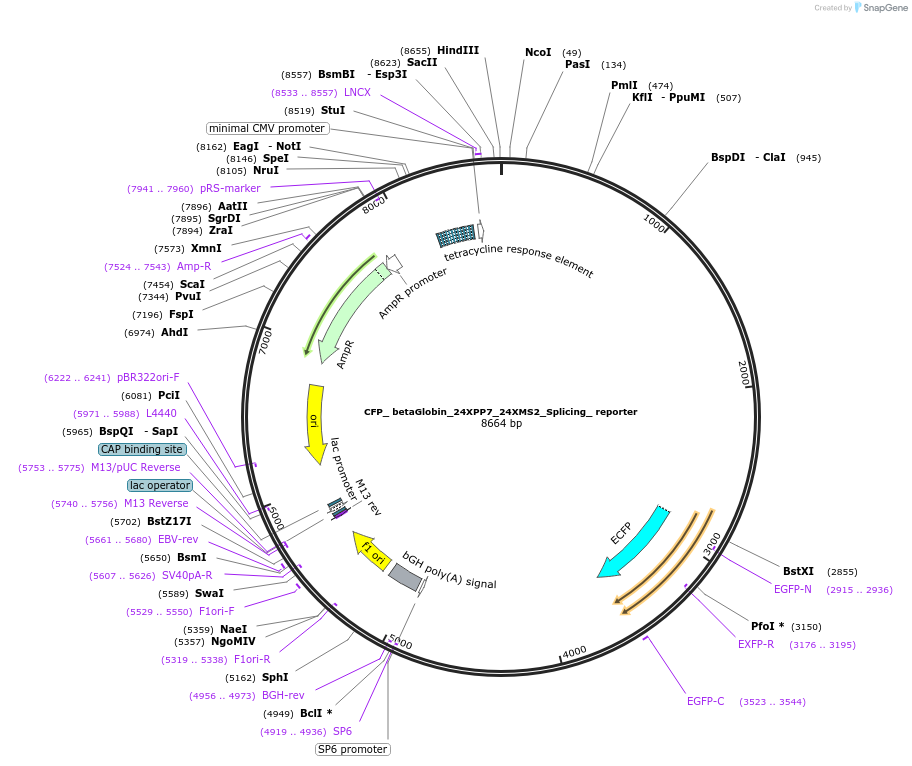

CFP_ betaGlobin_24XPP7_24XMS2_Splicing_ reporter
(Plasmid #61762)


Item Catalog # Description Quantity Price (USD)
Plasmid 61762 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
  • Backbone size w/o insert (bp) 3470
  • Total vector size (bp) 8669
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
    XL1 Blue
  • Copy number
    High Copy


  • Gene/Insert name
  • Species
    H. sapiens (human)
  • Insert Size (bp)
  • Promoter Dox inducible Tet-ON promoter
  • Tags / Fusion Proteins
    • 24 X PP7 hairpin cassette in intron 2 of b-globin gene
    • CFP-SKL (C terminal on insert)
    • 24 X MS2 hairpin cassette in 3'UTR of b-Globin reporter

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CFP_ betaGlobin_24XPP7_24XMS2_Splicing_ reporter was a gift from Daniel Larson (Addgene plasmid # 61762 ; ; RRID:Addgene_61762)
  • For your References section:

    Kinetic competition during the transcription cycle results in stochastic RNA processing. Coulon A, Ferguson ML, de Turris V, Palangat M, Chow CC, Larson DR. Elife. 2014 Oct 1;3. doi: 10.7554/eLife.03939. 10.7554/eLife.03939 PubMed 25271374
