pISceI-myl7:MBIC5-mCer3
(Plasmid
#74117)
-
PurposeZebrafish transgenic construct
-
Depositing Lab
-
Depositing OrganizationUniversity of Pittsburgh (University, School of Medicine, and Cancer Institute)
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 74117 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 74117-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 74117-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepCS2+
- Backbone size w/o insert (bp) 4095
- Total vector size (bp) 5612
-
Vector typeMammalian Expression ; mRNA generation for microinjection.
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameMBIC5-mCer3
-
SpeciesSynthetic
-
Insert Size (bp)1521
- Promoter SP6
-
Tag
/ Fusion Protein
- mCerulean 3 (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (not destroyed)
- 3′ cloning site Xho1 (not destroyed)
- 5′ sequencing primer Sp6
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 74117-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 74117-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pISceI-myl7:MBIC5-mCer3 was a gift from Michael Tsang (Addgene plasmid # 74117 ; http://n2t.net/addgene:74117 ; RRID:Addgene_74117) -
For your References section:
A genetically targetable near-infrared photosensitizer. He J, Wang Y, Missinato MA, Onuoha E, Perkins LA, Watkins SC, St Croix CM, Tsang M, Bruchez MP. Nat Methods. 2016 Mar;13(3):263-268. doi: 10.1038/nmeth.3735. Epub 2016 Jan 25. 10.1038/nmeth.3735 PubMed 26808669

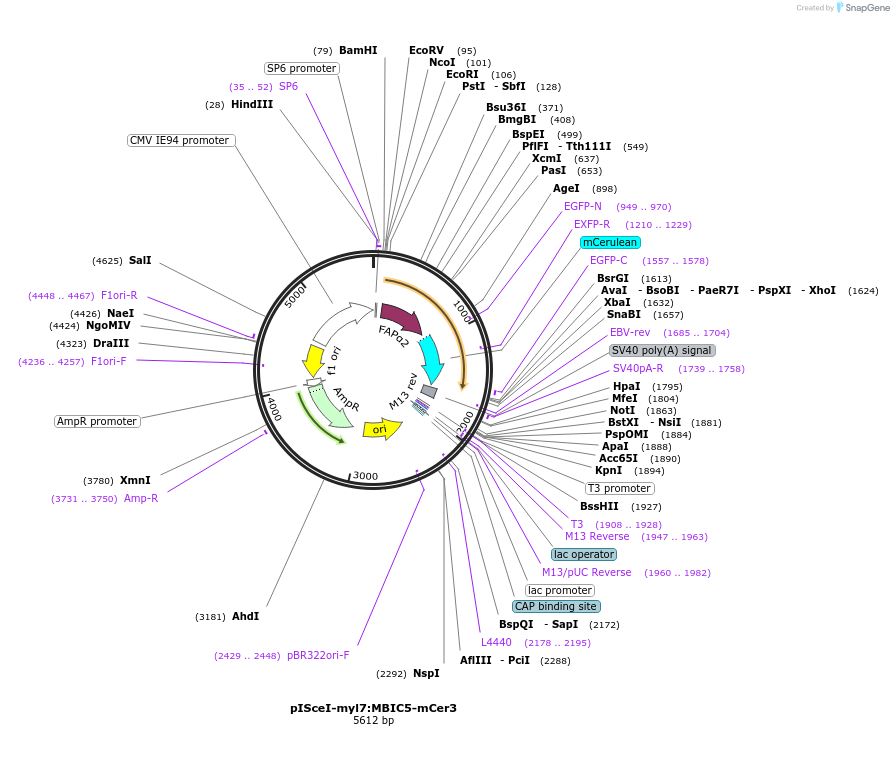

Map uploaded by the depositor.
