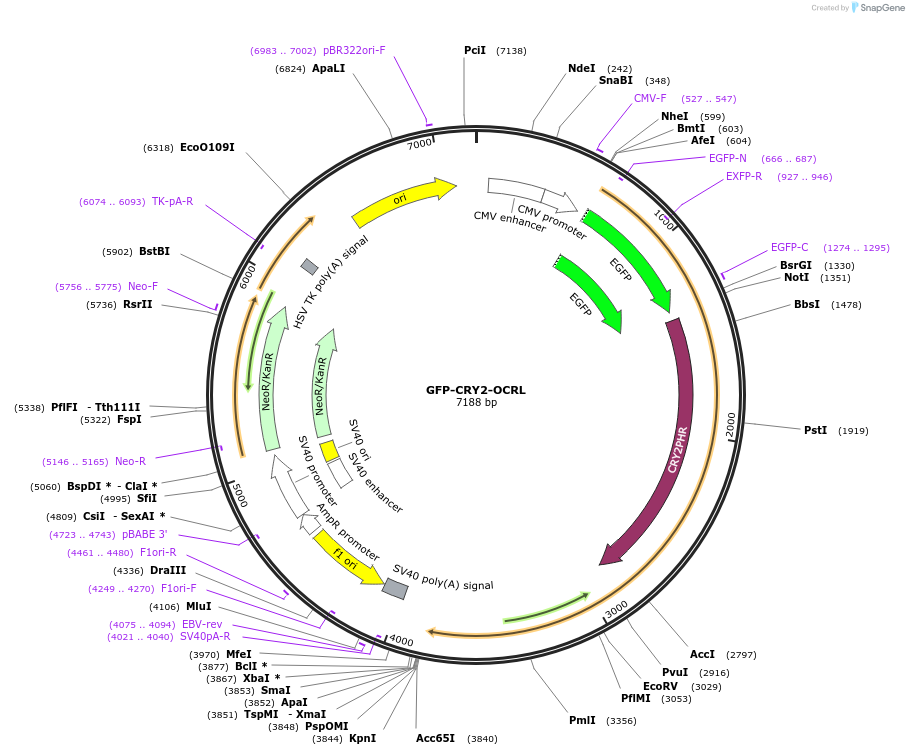

GFP-CRY2-OCRL
(Plasmid #79565)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 79565 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 79565-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 79565-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    pEGFP
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    OCRL
  • Species
    H. sapiens (human)
  • Mutation
    aa 234_539
  • Entrez Gene
    OCRL (a.k.a. DENT2, Dent-2, INPP5F, LOCR, NPHL2, OCRL-1, OCRL1)
  • Promoter CMV
  • Tags / Fusion Proteins
    • EGFP (N terminal on backbone)
    • CRY2 (photolyase homology region domain of Arabidopsis thaliana cryptochrome 2) (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site PvuI (not destroyed)
  • 3′ cloning site KpnI (not destroyed)
  • 5′ sequencing primer EGFP-F
  • 3′ sequencing primer SV40pA-R
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    GFP-CRY2-OCRL was a gift from Olof Idevall-Hagren (Addgene plasmid # 79565 ; http://n2t.net/addgene:79565 ; RRID:Addgene_79565)

  • For your References section:

    Optogenetic control of phosphoinositide metabolism. Idevall-Hagren O, Dickson EJ, Hille B, Toomre DK, De Camilli P. Proc Natl Acad Sci U S A. 2012 Aug 28;109(35):E2316-23. doi: 10.1073/pnas.1211305109. Epub 2012 Jul 30. 10.1073/pnas.1211305109 PubMed 22847441
