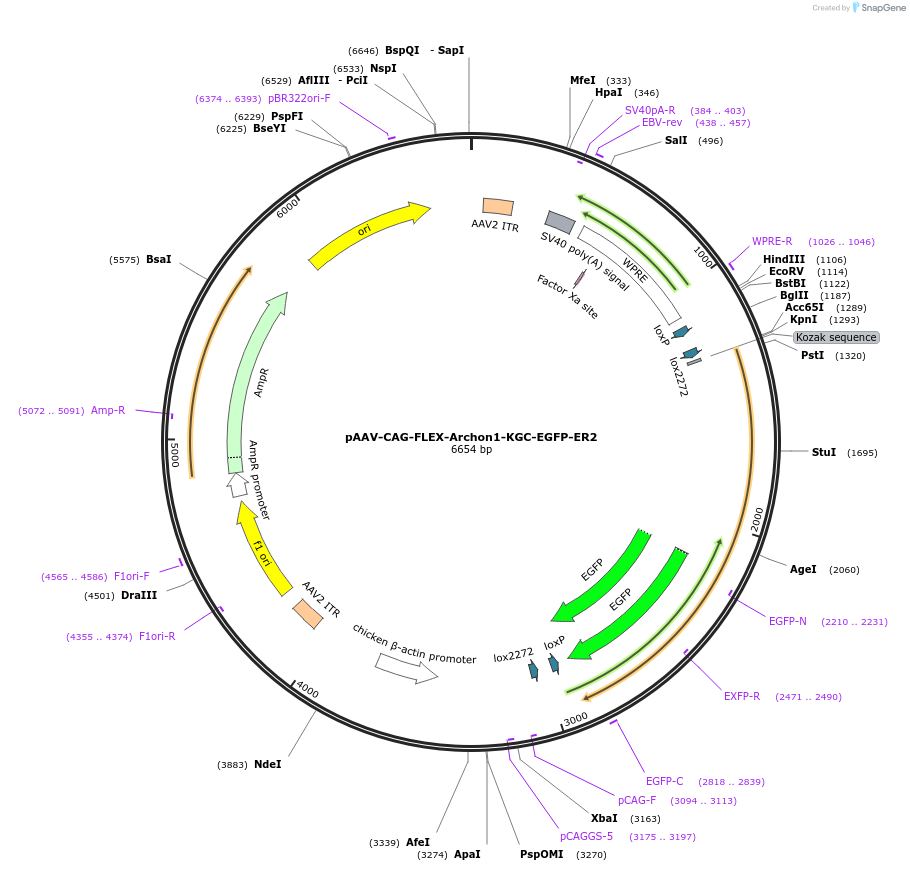

pAAV-CAG-FLEX-Archon1-KGC-EGFP-ER2
(Plasmid #108422)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 108422 Standard format: Plasmid sent in bacteria as agar stab 1 $65
AAV5 108422-AAV5 Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid. More Information
$380

This material is available to academics and nonprofits only.

Backbone

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Archon1-KGC-EGFP-ER2
  • Species
    Synthetic
  • Insert Size (bp)
    1581
  • GenBank ID
    MG250280.1
  • Promoter CAG

Cloning Information

Resource Information

Information for AAV5 (Catalog # 108422-AAV5) ( Back to top )

Purpose

Ready-to-use AAV5 particles produced from pAAV-CAG-FLEX-Archon1-KGC-EGFP-ER2 (#108422). In addition to the viral particles, you will also receive purified pAAV-CAG-FLEX-Archon1-KGC-EGFP-ER2 plasmid DNA.

CAG-driven, Cre dependent Archon1, an opsin-based fluorescent voltage indicator, fused to EGFP. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV5 cap gene
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAV5
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene EGFP

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Resource Information

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.01-0.03% of viral vectors in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, we recommend titrating to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral vector dosage in order to reduce the likelihood of Cre-independent expression.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-CAG-FLEX-Archon1-KGC-EGFP-ER2 was a gift from Edward Boyden (Addgene plasmid # 108422 ; http://n2t.net/addgene:108422 ; RRID:Addgene_108422)

    For viral preps, please replace (Addgene plasmid # 108422) in the above sentence with: (Addgene viral prep # 108422-AAV5)

  • For your References section:

    A robotic multidimensional directed evolution approach applied to fluorescent voltage reporters. Piatkevich KD, Jung EE, Straub C, Linghu C, Park D, Suk HJ, Hochbaum DR, Goodwin D, Pnevmatikakis E, Pak N, Kawashima T, Yang CT, Rhoades JL, Shemesh O, Asano S, Yoon YG, Freifeld L, Saulnier JL, Riegler C, Engert F, Hughes T, Drobizhev M, Szabo B, Ahrens MB, Flavell SW, Sabatini BL, Boyden ES. Nat Chem Biol. 2018 Feb 26. pii: 10.1038/s41589-018-0004-9. doi: 10.1038/s41589-018-0004-9. 10.1038/s41589-018-0004-9 PubMed 29483642
