|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||14748||Plasmid sent as bacteria in agar stab||1||$65|
This material is available to academics and nonprofits only.
- Backbone size (bp) 8174
Vector typeMammalian Expression, Lentiviral, RNAi
Growth in Bacteria
Copy numberHigh Copy
- Cloning method Restriction Enzyme
- 5′ cloning site EcoRI (not destroyed)
- 3′ cloning site PacI (not destroyed)
- 5′ sequencing primer LKO.1 5' (Common Sequencing Primers)
A portion of this plasmid was derived from a plasmid made byDerived from the pLKO.1 plasmid from The RNAi Consortium (TRC)
Terms and Licenses
Articles Citing this Plasmid
A variant of pLKO.1 containing an eGFP marker rather than puromycin. Please note that the AgeI site is NOT unique for this vector, so shRNAs should be designed for cloning with EcoRI and PacI instead. Forward oligo: 5'-AATT—21bp sense—CTCGAG—21bp antisense—TTTTTTTAT-3'. Reverse oligo: 5'-AAAAAAA—21bp sense—CTCGAG—21bp antisense-3'.
pLKO.3G was cloned by excising PAC-GFP from pLKO.3pgw and replacing it with eGFP from another vector using the enzymes BamHI and BsRGI.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pLKO.3G was a gift from Christophe Benoist & Diane Mathis (Addgene plasmid # 14748)

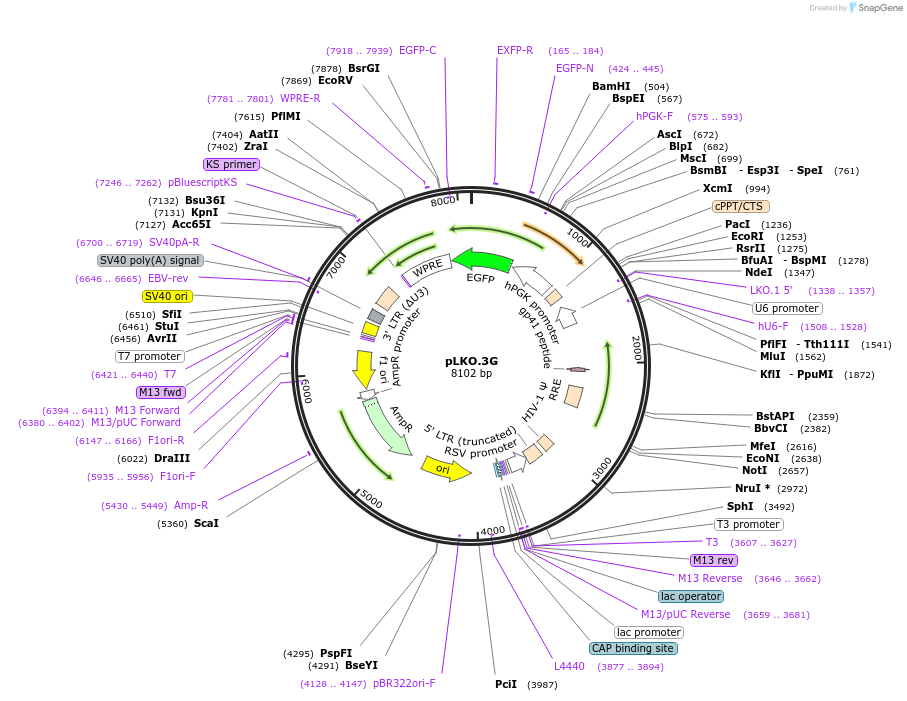

Generated by Addgene from full sequence supplied by depositor.
Generated by Addgene from full sequence.
Map uploaded by the depositor.
