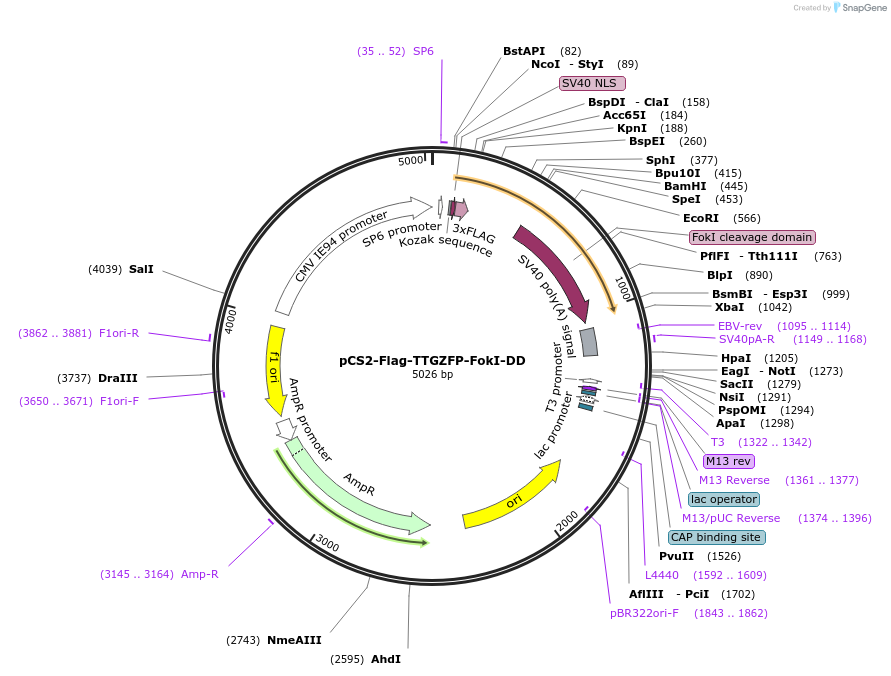

pCS2-Flag-TTGZFP-FokI-DD
(Plasmid #18755)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 18755 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    CS2
  • Backbone size w/o insert (bp) 4760
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    zinc finger nuclease
  • Species
    M. musculus (mouse)
  • Insert Size (bp)
    267
  • Mutation
    RNA expression vector for expressing the zinc finger nuclease. Zinc fingers are subcloned between the kpn1 and bamHI sites. This results in a direct, in frame fusion with the C-terminal FokI nuclease. In this case the nuclease is the DD version of the heterodimeric set. In addition there is an N-terminal flag tag.

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site kpnI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer CS2 forward
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCS2-Flag-TTGZFP-FokI-DD was a gift from Scot Wolfe (Addgene plasmid # 18755 ; http://n2t.net/addgene:18755 ; RRID:Addgene_18755)
  • For your References section:

    Targeted gene inactivation in zebrafish using engineered zinc-finger nucleases. Meng X, Noyes MB, Zhu LJ, Lawson ND, Wolfe SA. Nat Biotechnol. 2008 Jun . 26(6):695-701. 10.1038/nbt1398 PubMed 18500337
