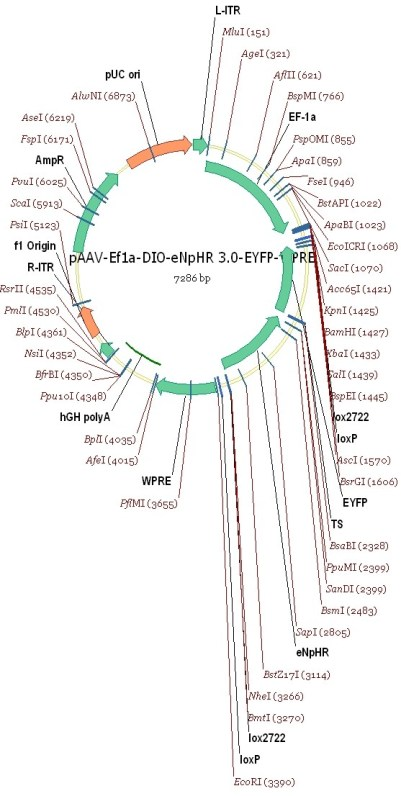

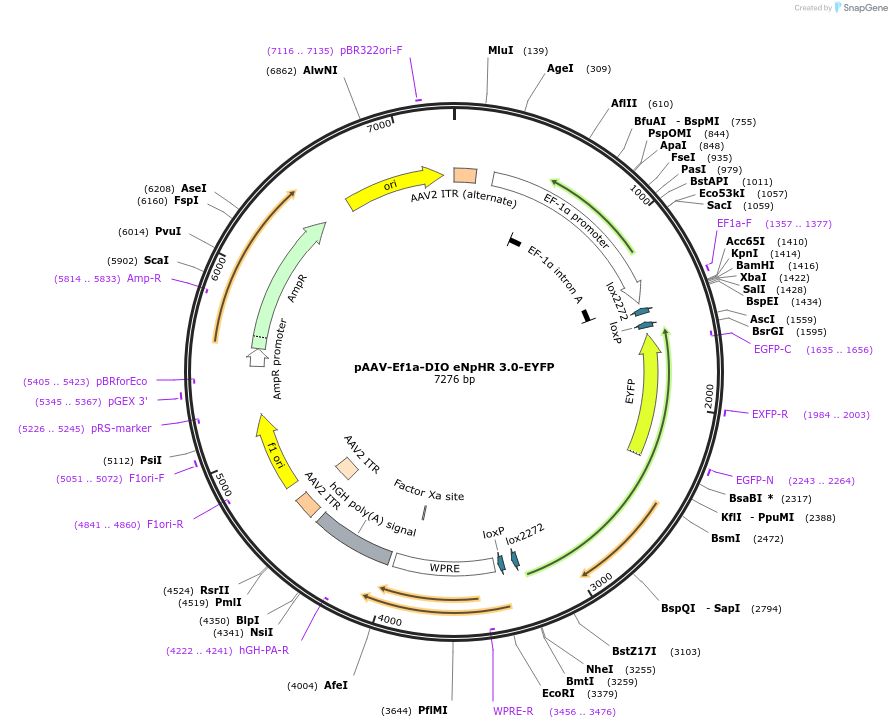

pAAV-Ef1a-DIO eNpHR 3.0-EYFP
(Plasmid #26966)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 26966 Standard format: Plasmid sent in bacteria as agar stab 1 $85
AAV1 26966-AAV1 Virus (100 µL at titer ≥ 1×10¹³ vg/mL) and Plasmid. $405
AAV5 26966-AAV5 Virus (100 µL at titer ≥ 1×10¹³ vg/mL) and Plasmid. $405
AAV9 26966-AAV9 Virus (100 µL at titer ≥ 1×10¹³ vg/mL) and Plasmid. $405
AAV Retrograde 26966-AAVrg Virus (100 µL at titer ≥ 7 × 10¹² vg/mL) and Plasmid. $405

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pAAV
  • Backbone size w/o insert (bp) 5609
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Growth instructions
    Please use Rec A- competent cells such as Stbl3 cells from Invitrogen for transformation.
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    eNpHR 3.0
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1683
  • Mutation
    ER export at 3' end of gene. Trafficking signal (TS) in between gene and fluorophore.
  • Promoter EF1alpha
  • Tag / Fusion Protein
    • EYFP (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site AscI (not destroyed)
  • 3′ cloning site NheI (not destroyed)
  • 5′ sequencing primer ggccagcttggcacttgatg
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

This plasmid contains the human elongation factor-1a promoter. Golgi export trafficking signal (TS) sequence is KSRITSEGEYIPLDQIDINV. ER export sequence is FCYENEV.

For additional information please visit - http://www.optogenetics.org

Information for AAV1 (Catalog # 26966-AAV1) ( Back to top )

Purpose

Ready-to-use AAV1 particles produced from pAAV-Ef1a-DIO eNpHR 3.0-EYFP (#26966). In addition to the viral particles, you will also receive purified pAAV-Ef1a-DIO eNpHR 3.0-EYFP plasmid DNA.

EF1a-driven, cre-dependent eNpHR 3.0-EYFP for optogenetic inhibition. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 1×10¹³ vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV1 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV1
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene EYFP (Cre-dependent)

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.1-0.8% of viral particles in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, it is necessary to optimize the injection volume and viral titer to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral particle dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV5 (Catalog # 26966-AAV5) ( Back to top )

Purpose

Ready-to-use AAV5 particles produced from pAAV-Ef1a-DIO eNpHR 3.0-EYFP (#26966). In addition to the viral particles, you will also receive purified pAAV-Ef1a-DIO eNpHR 3.0-EYFP plasmid DNA.

EF1a-driven, cre-dependent eNpHR 3.0-EYFP for optogenetic inhibition. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 1×10¹³ vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV5 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV5
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene EYFP (Cre-dependent)

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.1-0.8% of viral particles in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, it is necessary to optimize the injection volume and viral titer to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral particle dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV9 (Catalog # 26966-AAV9) ( Back to top )

Purpose

Ready-to-use AAV9 particles produced from pAAV-Ef1a-DIO eNpHR 3.0-EYFP (#26966). In addition to the viral particles, you will also receive purified pAAV-Ef1a-DIO eNpHR 3.0-EYFP plasmid DNA.

EF1a-driven, cre-dependent eNpHR 3.0-EYFP for optogenetic inhibition. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 1×10¹³ vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV9 cap gene
  • Buffer PBS + 0.001% Pluronic F-68
  • Serotype AAV9
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene EYFP (Cre-dependent)

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Using FLEX vectors in vivo: LoxP sites in FLEX plasmids are known to recombine during DNA amplification and viral vector production, which may result in a minority of Cre-activated (i.e., "flipped") viral vectors. Addgene has measured this occurs in 0.1-0.8% of viral particles in our typical production protocol. This can lead to a small number of cells exhibiting Cre-independent transgene expression in vivo. To address this, it is necessary to optimize the injection volume and viral titer to find the optimal AAV dosage required for Cre-dependent transgene expression and function in vivo. This may include reducing the viral particle dosage in order to reduce the likelihood of Cre-independent expression.

Information for AAV Retrograde (Catalog # 26966-AAVrg) ( Back to top )

Purpose

Ready-to-use AAV Retrograde particles produced from pAAV-Ef1a-DIO eNpHR 3.0-EYFP (#26966). In addition to the viral particles, you will also receive purified pAAV-Ef1a-DIO eNpHR 3.0-EYFP plasmid DNA.

EF1a-driven, cre-dependent eNpHR 3.0-EYFP for optogenetic inhibition. These AAV were produced with a retrograde serotype, which permits retrograde access to projection neurons. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7 × 10¹² vg/mL
  • Pricing $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV retrograde cap gene from rAAV2-retro helper (plasmid #81070)
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAV retrograde (AAVrg)
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene EYFP (Cre-dependent)

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

Addgene Comments

Retrograde functionality is dependent on high viral titers. Addgene recommends not diluting your AAV preps prior to use.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-Ef1a-DIO eNpHR 3.0-EYFP was a gift from Karl Deisseroth (Addgene plasmid # 26966 ; http://n2t.net/addgene:26966 ; RRID:Addgene_26966)

    For viral preps, please replace (Addgene plasmid # 26966) in the above sentence with: (Addgene viral prep # 26966-AAV1), (Addgene viral prep # 26966-AAV5), (Addgene viral prep # 26966-AAV9), or (Addgene viral prep # 26966-AAVrg)

  • For your References section:

    Molecular and cellular approaches for diversifying and extending optogenetics. Gradinaru V, Zhang F, Ramakrishnan C, Mattis J, Prakash R, Diester I, Goshen I, Thompson KR, Deisseroth K. Cell. 2010 Apr 2. 141(1):154-65. 10.1016/j.cell.2010.02.037 PubMed 20303157
