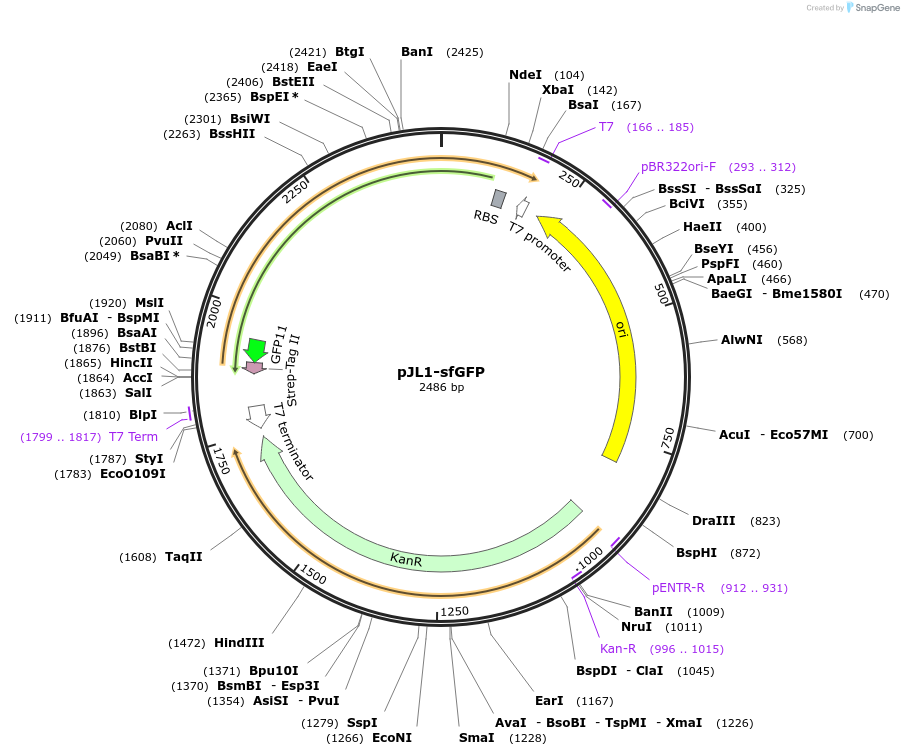

pJL1-sfGFP
(Plasmid #102634)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 102634 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pJL1
  • Backbone size w/o insert (bp) 1759
  • Total vector size (bp) 2476
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    sfGFP
  • Insert Size (bp)
    723
  • Promoter T7
  • Tag / Fusion Protein
    • strep tag (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NdeI (not destroyed)
  • 3′ cloning site SalI (not destroyed)
  • 5′ sequencing primer TAATACGACTCACTATAGGG
  • 3′ sequencing primer TAGTTATTGCTCAGCGGTGG
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJL1-sfGFP was a gift from Michael Jewett (Addgene plasmid # 102634 ; http://n2t.net/addgene:102634 ; RRID:Addgene_102634)
  • For your References section:

    BioBits Bright: A fluorescent synthetic biology education kit. Stark JC, Huang A, Nguyen PQ, Dubner RS, Hsu KJ, Ferrante TC, Anderson M, Kanapskyte A, Mucha Q, Packett JS, Patel P, Patel R, Qaq D, Zondor T, Burke J, Martinez T, Miller-Berry A, Puppala A, Reichert K, Schmid M, Brand L, Hill LR, Chellaswamy JF, Faheem N, Fetherling S, Gong E, Gonzalzles EM, Granito T, Koritsaris J, Nguyen B, Ottman S, Palffy C, Patel A, Skweres S, Slaton A, Woods T, Donghia N, Pardee K, Collins JJ, Jewett MC. Sci Adv. 2018 Aug 1;4(8):eaat5107. doi: 10.1126/sciadv.aat5107. eCollection 2018 Aug. 10.1126/sciadv.aat5107 PubMed 30083609
