pJF131B
(Plasmid
#113326)
-
PurposepTet-W108 scRNA.b2, pTet-RR2-sgRNA
-
Depositing Lab
-

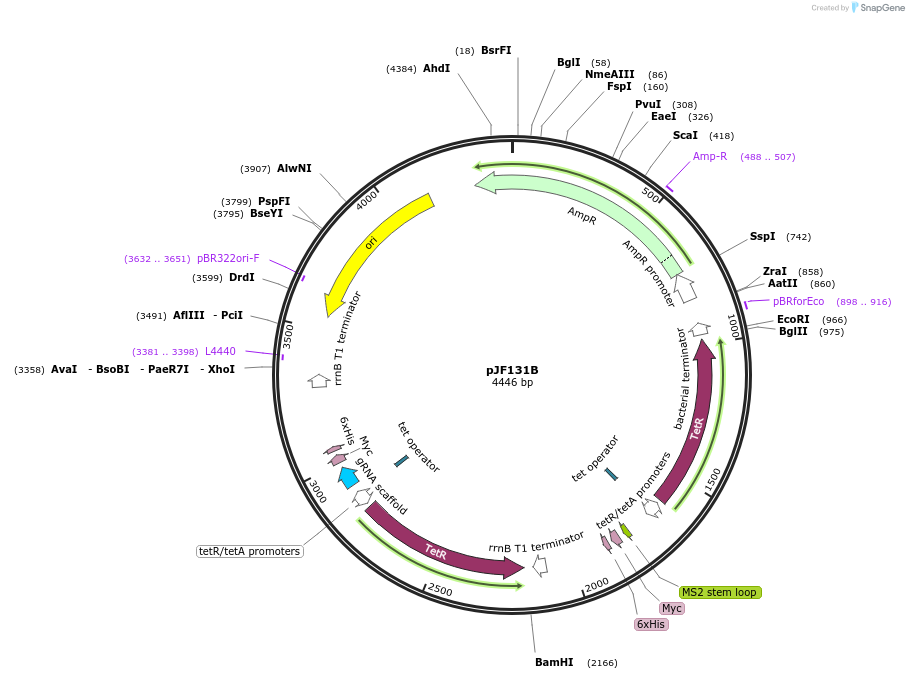

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 113326 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backboneColE1 vector
-
Vector typeBacterial Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameW108 scRNA_MS2 and sgRNA_RR2
-
gRNA/shRNA sequenceGAAGATCCGGCCTGCAGCCA
-
SpeciesSynthetic
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer aataggcgtatcacgaggcag
- 3′ sequencing primer GTTTCGCCACCTCTGACTTG (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pJF131B was a gift from Jesse Zalatan (Addgene plasmid # 113326 ; http://n2t.net/addgene:113326 ; RRID:Addgene_113326) -
For your References section:
Synthetic CRISPR-Cas gene activators for transcriptional reprogramming in bacteria. Dong C, Fontana J, Patel A, Carothers JM, Zalatan JG. Nat Commun. 2018 Jun 27;9(1):2489. doi: 10.1038/s41467-018-04901-6. 10.1038/s41467-018-04901-6 PubMed 29950558
