(Plasmid #11619)


Item Catalog # Description Quantity Price (USD)
Plasmid 11619 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
  • Backbone size (bp) 8500
  • Vector type
    Mammalian Expression, Lentiviral, RNAi, Cre/Lox

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy


  • Gene/Insert name
  • Promoter mouse U6
  • Tag / Fusion Protein
    • GFP (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HpaI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer mU6-F (5'-ATATCCCTTGGAGAAAAGCCTT-3')
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

pLB is a modification of pLL3.7. Two genetic elements known to prevent epigenetic silencing were added. A fragment of one antirepressor element (#40) was cloned upstream of the mouse U6 promoter and a scaffold-attached region (SAR) was cloned downstream of GFP.

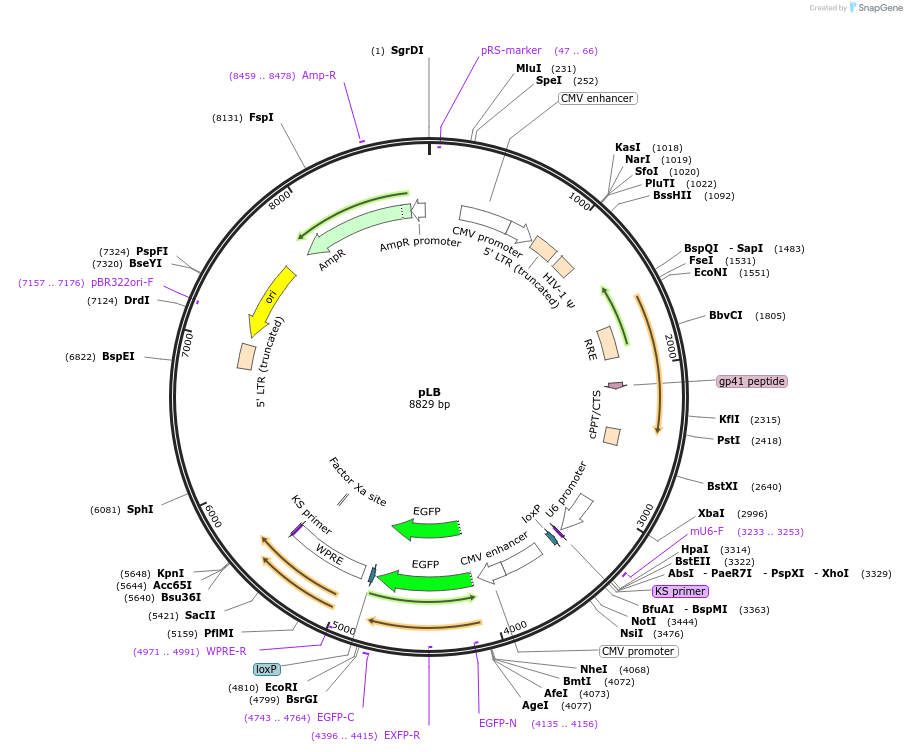

Please see author's map for more detailed information.

Note: A single base pair deletion at position 11 of the mouse U6 promoter in this plasmid does not impair the efficacy of this reagent.
There is also a base pair insertion upstream of the promoter. The depositing lab has no indication that it functionally impairs pLB.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLB was a gift from Stephan Kissler (Addgene plasmid # 11619 ; ; RRID:Addgene_11619)
  • For your References section:

    In vivo RNA interference demonstrates a role for Nramp1 in modifying susceptibility to type 1 diabetes. Kissler S, Stern P, Takahashi K, Hunter K, Peterson LB, Wicker LS. Nat Genet. 2006 Apr . 38(4):479-83. 10.1038/ng1766 PubMed 16550170
