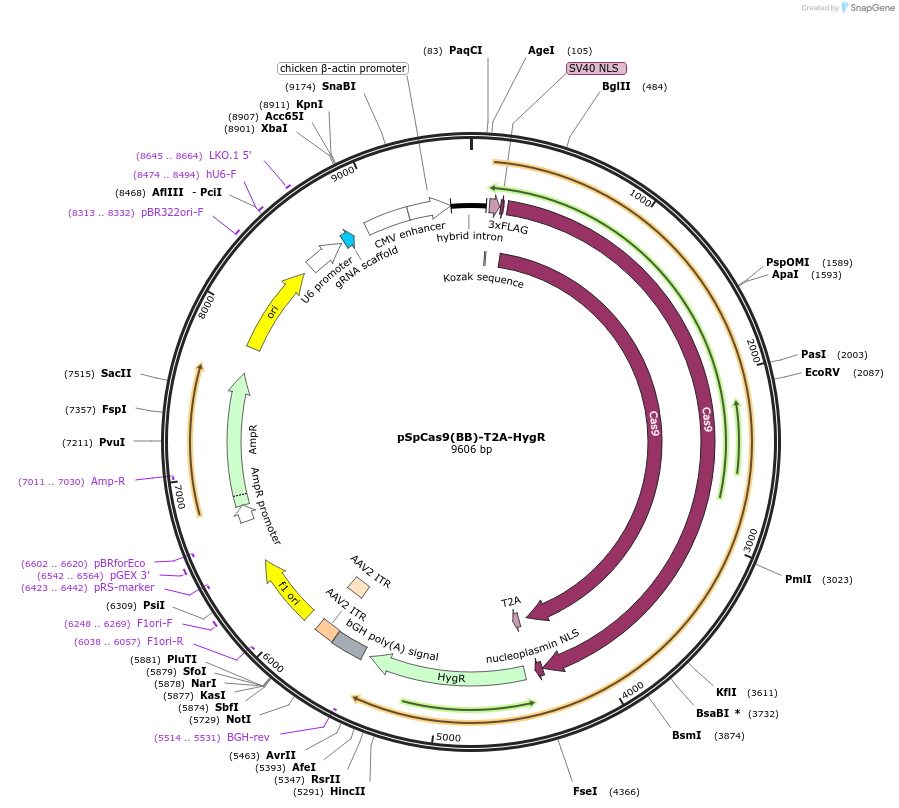

pSpCas9(BB)-T2A-HygR
(Plasmid #118153)

• Purpose: SpCas9 expression vector
• Depositing Lab: Jorge Ferrer
• Depositing Organization: Imperial College London
  Located in the United Kingdom of Great Britain and Northern Ireland
• Publication: Miguel-Escalada et al Nat Genet. 2019 Jun 28. pii: 10.1038/s41588-019-0457-0. doi: 10.1038/s41588-019-0457-0.
• Citations:

  1 Article

Backbone

• Vector backbone: pX458
• Backbone manufacturer: Feng Zhang (Addgene #48138)
• Vector type: Mammalian Expression, CRISPR
• Selectable markers: Hygromycin

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): Stbl3
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: hSpCas9-T2A-HygR
• Alt name: SpCas9-Hygro
• Species: H. sapiens (human)
• Insert Size (bp): 5370
• Promoter: CAG and U6
• Tag / Fusion Protein:
  • 3XFLAG (N terminal on insert)

Cloning Information

• Cloning method: Gibson Cloning
• 5′ sequencing primer: TTTATGGCGAGGCGGCGG

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Please visit https://www.biorxiv.org/content/early/2018/08/27/400291 for bioRxiv preprint.

Please Note: Addgene NGS unable to fully resolve CAG promoter. Please refer to the depositor's sequence for this part of the plasmid.

DNA (Catalog # 118153-D50)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 50 μg
• Concentration: 1 μg/μL
• Pricing: $495 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

DNA (Catalog # 118153-D100)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 100 μg
• Concentration: 1 μg/μL
• Pricing: $585 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
