(Plasmid #120392)


Item Catalog # Description Quantity Price (USD)
Plasmid 120392 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone size (bp) 4000
  • Vector type
  • Promoter U6
  • Tag / Fusion Protein
    • mCherry.3XFLAG (C terminal on backbone)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ sequencing primer GCCAACTCCATCACTAGGGG
  • 3′ sequencing primer ATGCGCAATTTGGGGAATGG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The original backbone was published in Candemir et al. Eur Neuropsychopharmacol. 2016 (PMID: 26861996)

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

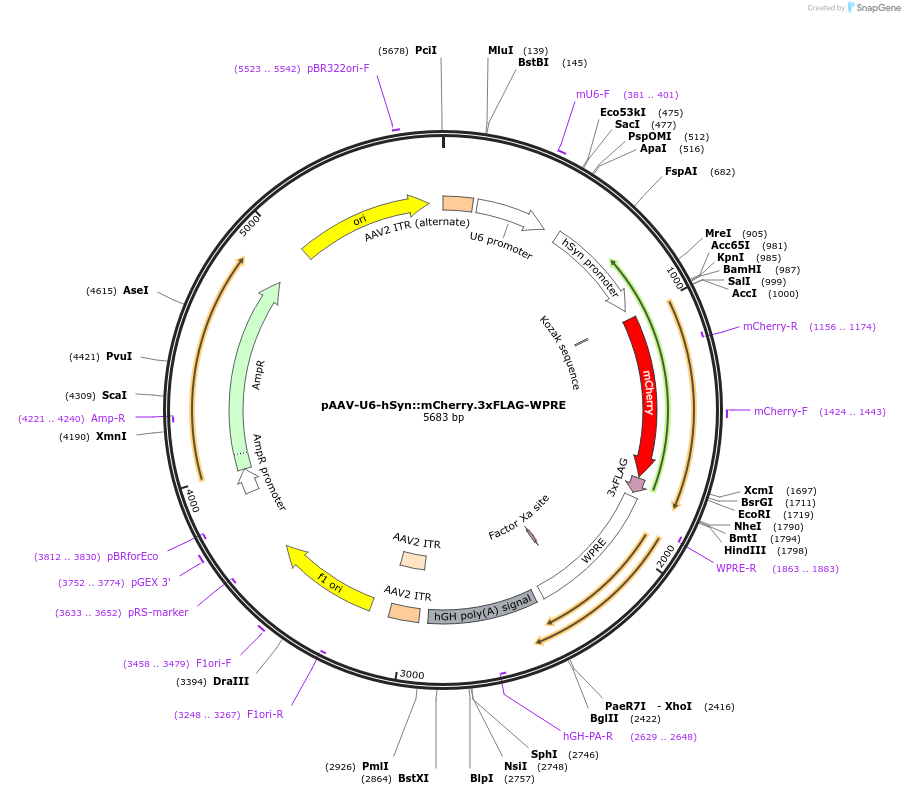

    pAAV-U6-hSyn::mCherry.3xFLAG-WPRE was a gift from Florian Freudenberg (Addgene plasmid # 120392 ; ; RRID:Addgene_120392)
  • For your References section:

    Knockdown of the ADHD Candidate Gene Diras2 in Murine Hippocampal Primary Cells. Grunewald L, Chiocchetti AG, Weber H, Scholz CJ, Schartner C, Freudenberg F, Reif A. J Atten Disord. 2019 Jan 9:1087054718822129. doi: 10.1177/1087054718822129. 10.1177/1087054718822129 PubMed 30623719
