PurposeExpress SARS-CoV-2 spike protein with C9 tag at C-terminal in mammalian cells
-
Depositing Lab
-
Depositing OrganizationUniversity of Minnesota
Located in the United States of America -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 145032 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 * | |
| DNA | 145032-D50 | 50 μg of DNA in Tris buffer | $495 * | ||
| DNA | 145032-D100 | 100 μg of DNA in Tris buffer | $585 * | ||
* Log in to view industry pricing.

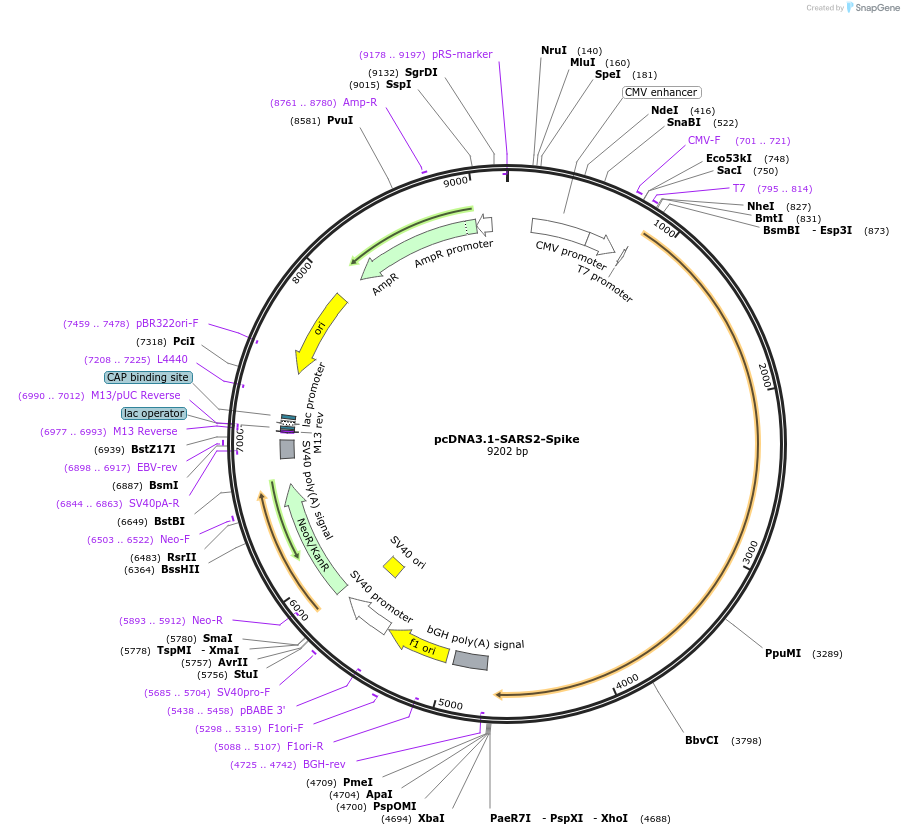

Backbone
-
Vector backbonepcDNA3.1
- Backbone size w/o insert (bp) 5500
- Total vector size (bp) 9300
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameSARS-CoV-2 Spike
-
SpeciesSynthetic
-
Insert Size (bp)3819
-
Entrez GeneS (a.k.a. GU280_gp02, spike glycoprotein)
- Promoter CMV
-
Tag
/ Fusion Protein
- C9 (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NheI (not destroyed)
- 3′ cloning site XhoI (not destroyed)
- 5′ sequencing primer T7-F
- 3′ sequencing primer BGH-R
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
See further use in:
Cell entry mechanisms of SARS-CoV-2. Jian Shang, Yushun Wan, Chuming Luo, Gang Ye, Qibin Geng, Ashley Auerbach, and Fang Li. PNAS May 26, 2020 117 (21) 11727-11734 DOI: 10.1073/pnas.2003138117
DNA (Catalog # 145032-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 145032-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3.1-SARS2-Spike was a gift from Fang Li (Addgene plasmid # 145032 ; http://n2t.net/addgene:145032 ; RRID:Addgene_145032) -
For your References section:
Structural basis of receptor recognition by SARS-CoV-2. Shang J, Ye G, Shi K, Wan Y, Luo C, Aihara H, Geng Q, Auerbach A, Li F. Nature. 2020 Mar 30. pii: 10.1038/s41586-020-2179-y. doi: 10.1038/s41586-020-2179-y. 10.1038/s41586-020-2179-y PubMed 32225175
