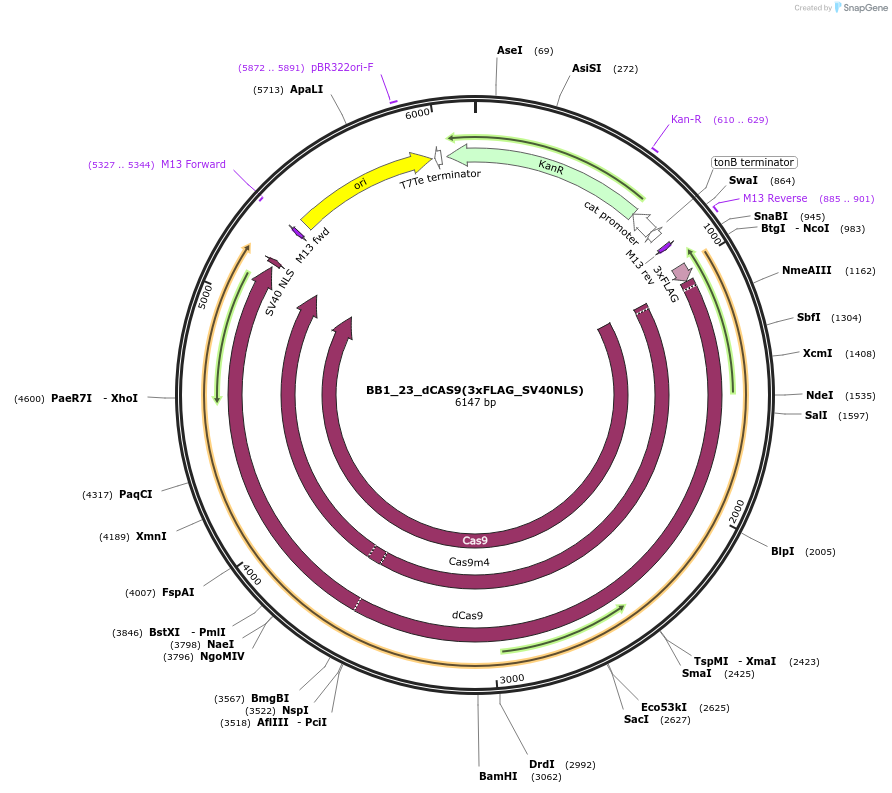

BB1_23_dCAS9(3xFLAG_SV40NLS)
(Plasmid #161478)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 161478 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 161478-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 161478-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    BB1_L_23_syn_BsaI
  • Backbone size w/o insert (bp) 2000
  • Total vector size (bp) 6147
  • Vector type
    CRISPR, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    dCAS9
  • Alt name
    dead Cas9
  • Tag / Fusion Protein
    • FLAG Tag, SV40 NLS

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (destroyed during cloning)
  • 3′ cloning site BpiI (destroyed during cloning)
  • 5′ sequencing primer CAGGAAACAGCTATGAC
  • 3′ sequencing primer GTAAAACGACGGCCAGTT
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    BB1_23_dCAS9(3xFLAG_SV40NLS) was a gift from Brigitte Gasser & Diethard Mattanovich (Addgene plasmid # 161478 ; http://n2t.net/addgene:161478 ; RRID:Addgene_161478)

  • For your References section:

    Fine-Tuning of Transcription in Pichia pastoris Using dCas9 and RNA Scaffolds. Baumschabl M, Prielhofer R, Mattanovich D, Steiger MG. ACS Synth Biol. 2020 Dec 18;9(12):3202-3209. doi: 10.1021/acssynbio.0c00214. Epub 2020 Nov 12. 10.1021/acssynbio.0c00214 PubMed 33180466
