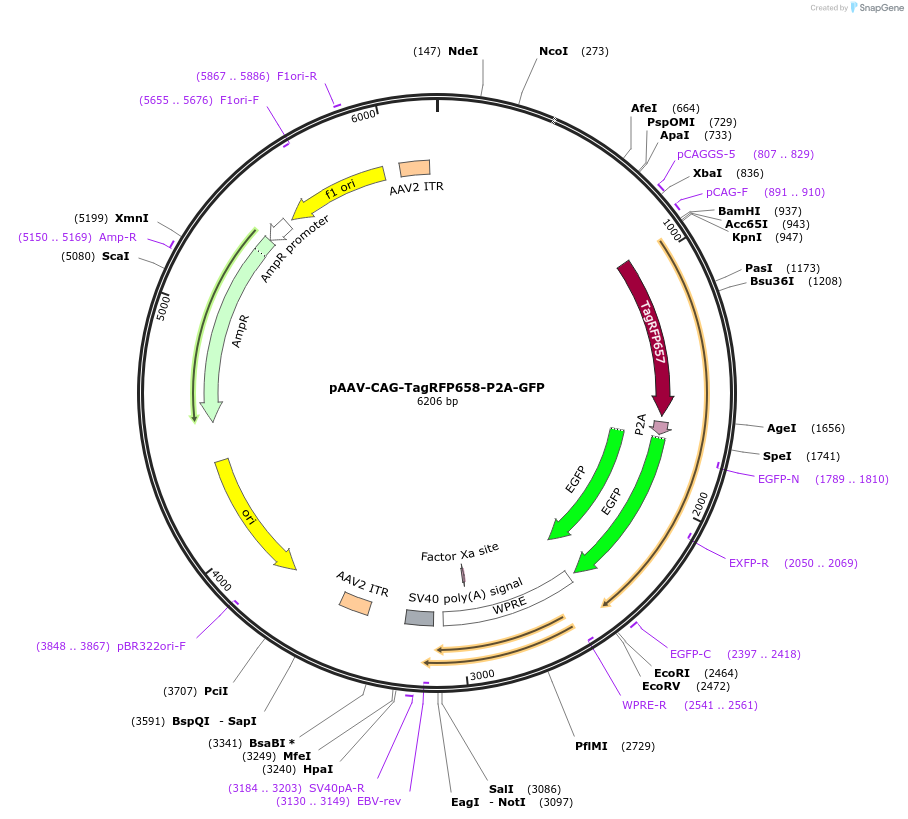

pAAV-CAG-TagRFP658-P2A-GFP
(Plasmid #178971)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 178971 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pAAV-CAG-EGFP-WPRE
  • Backbone size w/o insert (bp) 4000
  • Total vector size (bp) 5443
  • Vector type
    Mammalian Expression, AAV
  • Selectable markers
    ampicillin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    TagRFP658-P2A-GFP
  • Species
    H. sapiens (human), M. musculus (mouse), Synthetic
  • Insert Size (bp)
    1509
  • Promoter CAG

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer taaaaagcgaagcgcgcggc
  • 3′ sequencing primer cgtaaaaggagcaacatagttaagaataccag
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-CAG-TagRFP658-P2A-GFP was a gift from Kiryl Piatkevich (Addgene plasmid # 178971 ; http://n2t.net/addgene:178971 ; RRID:Addgene_178971)
  • For your References section:

    Rapid directed molecular evolution of fluorescent proteins in mammalian cells. Babakhanova S, Jung EE, Namikawa K, Zhang H, Wang Y, Subach OM, Korzhenevskiy DA, Rakitina TV, Xiao X, Wang W, Shi J, Drobizhev M, Park D, Eisenhard L, Tang H, Koster RW, Subach FV, Boyden ES, Piatkevich KD. Protein Sci. 2022 Mar;31(3):728-751. doi: 10.1002/pro.4261. Epub 2021 Dec 30. 10.1002/pro.4261 PubMed 34913537
