pU6-pegRNA-HEK3-CTTins-px330-scaffold
(Plasmid #180017)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 180017 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

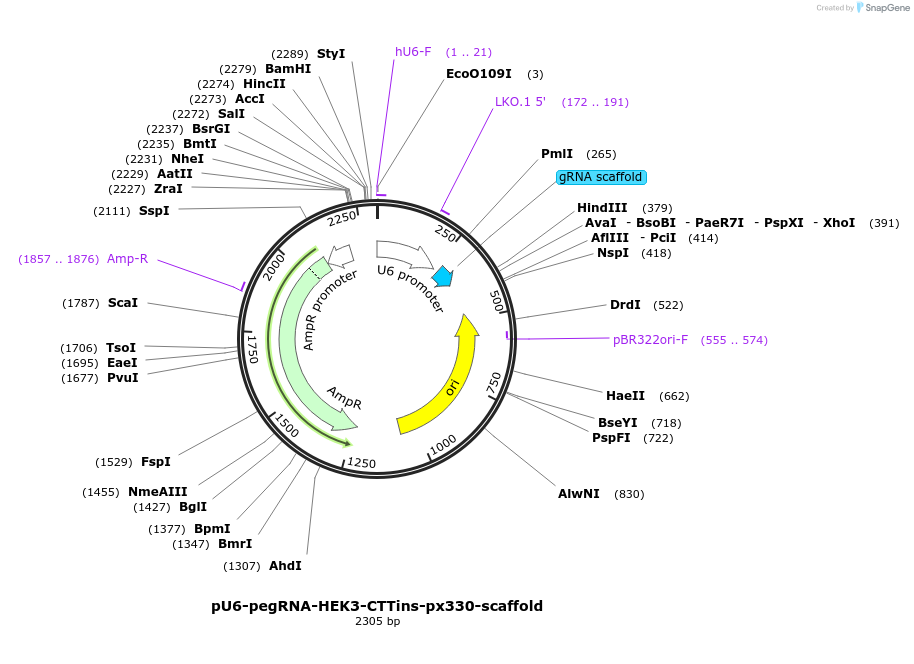

Backbone

  • Vector backbone
    pU6-pegRNA-GG-acceptor
  • Backbone manufacturer
    David Liu (Addgene plasmid # 132777)
  • Vector type
    Mammalian Expression, CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Prime editing pegRNA for HEK3-CTTins, with px330 scaffold
  • gRNA/shRNA sequence
    GGCCCAGACTGAGCACGTGAGTTTTAGAGCTAGAAATAGCAAGTTAAAATAAGGCTAGTCCGTTATCAACTTGAAAAAGTGGCACCGAGTCGGTGCTCTGCCATCAAAGCGTGCTCAGTCTG
  • Species
    Synthetic
  • Insert Size (bp)
    122
  • Entrez Gene
    EPHA8 (a.k.a. EEK, EK3, HEK3)
  • Promoter Human U6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsaI (destroyed during cloning)
  • 3′ cloning site BsaI (destroyed during cloning)
  • 5′ sequencing primer hU6-F (GAGGGCCTATTTCCCATGATT)
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Backbone is from David Liu (Addgene plasmid # 132777)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pU6-pegRNA-HEK3-CTTins-px330-scaffold was a gift from Dirk Hockemeyer (Addgene plasmid # 180017 ; http://n2t.net/addgene:180017 ; RRID:Addgene_180017)
  • For your References section:

    Highly efficient generation of isogenic pluripotent stem cell models using prime editing. Li H, Busquets O, Verma Y, Syed KM, Kutnowski N, Pangilinan GR, Gilbert LA, Bateup HS, Rio DC, Hockemeyer D, Soldner F. Elife. 2022 Sep 7;11:e79208. doi: 10.7554/eLife.79208. 10.7554/eLife.79208 PubMed 36069759
