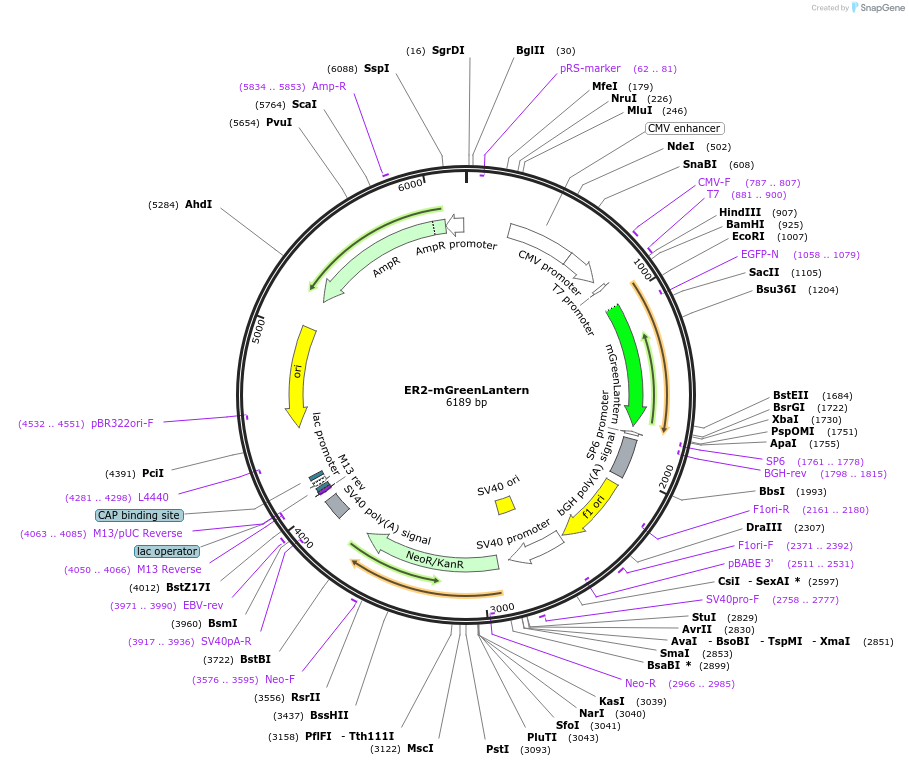

ER2-mGreenLantern
(Plasmid #186548)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 186548 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pcDNA3.1
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mGreenLantern
  • Alt name
    mGL
  • Species
    Synthetic
  • Insert Size (bp)
    717
  • Mutation
    Clover-F64L/S72A/E124V/N149K/I167T/S175G/A206K/L221K/F223R/G232D
  • Promoter CMV
  • Tags / Fusion Proteins
    • Calreticulin (N terminal on insert)
    • KDEL (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer CMV Forward (CGCAAATGGGCGGTAGGCGTG)
  • 3′ sequencing primer BGH Reverse (TAGAAGGCACAGTCGAGG)
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

To improve ER localization compared to Addgene #164463, the Kozak sequence and ATG that were N-terminal to the FP have been deleted.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    ER2-mGreenLantern was a gift from Gregory Petsko (Addgene plasmid # 186548 ; http://n2t.net/addgene:186548 ; RRID:Addgene_186548)
  • For your References section:

    Chemically stable fluorescent proteins for advanced microscopy. Campbell BC, Paez-Segala MG, Looger LL, Petsko GA, Liu CF. Nat Methods. 2022 Nov 7. pii: 10.1038/s41592-022-01660-7. doi: 10.1038/s41592-022-01660-7. 10.1038/s41592-022-01660-7 PubMed 36344833
