pCMV Gab1(PRD)-mCherry-HOTag3
(Plasmid
#190026)
-
PurposeTransiently expresses CluMPS for reporting on EML4-ALK oncogene clusters in mammalian cells.
-
Depositing Lab
-
Depositing OrganizationUniversity of Pennsylvania
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 190026 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 190026-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 190026-D100 | 100 μg of DNA in Tris buffer | $585 | ||

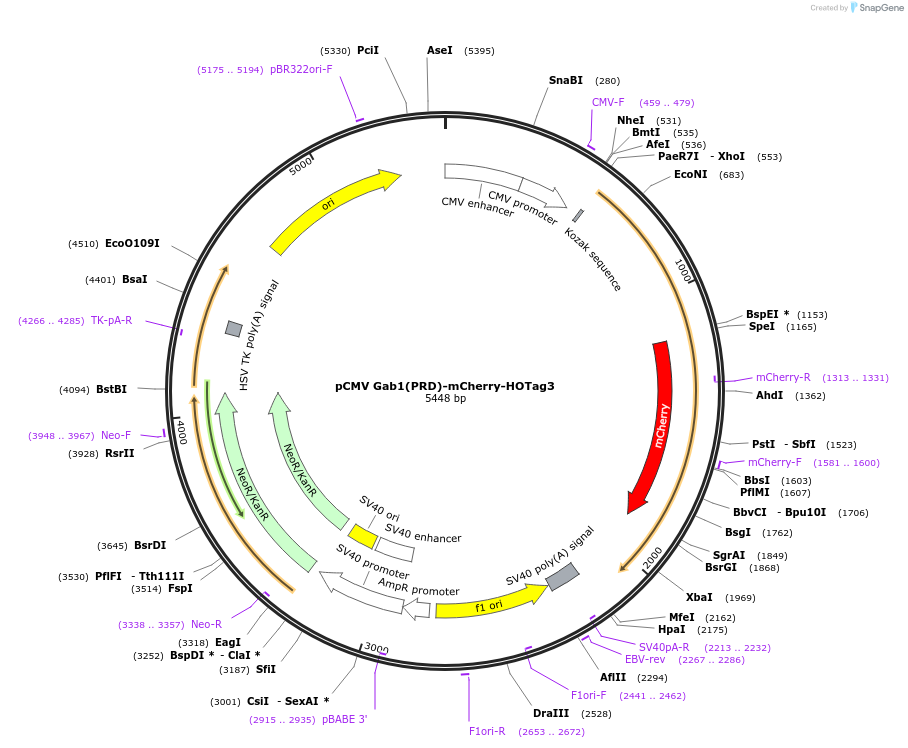

Backbone
-
Vector backbonepCMV
- Backbone size w/o insert (bp) 3948
- Total vector size (bp) 5448
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameGab1(PRD) CluMPS
-
Alt nameGab1_proline_rich_domain-mCh-HOTag3
-
Insert Size (bp)1500
- Promoter CMV
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
- 3′ sequencing primer tgctattgctttatttgtaaccattataagc
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Please visit https://www.biorxiv.org/content/10.1101/2022.07.13.499962v1 for bioRxiv preprint.
DNA (Catalog # 190026-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 190026-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCMV Gab1(PRD)-mCherry-HOTag3 was a gift from Lukasz Bugaj (Addgene plasmid # 190026 ; http://n2t.net/addgene:190026 ; RRID:Addgene_190026) -
For your References section:
Simple visualization of submicroscopic protein clusters with a phase-separation-based fluorescent reporter. Mumford TR, Rae D, Brackhahn E, Idris A, Gonzalez-Martinez D, Pal AA, Chung MC, Guan J, Rhoades E, Bugaj LJ. Cell Syst. 2024 Feb 21;15(2):166-179.e7. doi: 10.1016/j.cels.2024.01.005. Epub 2024 Feb 8. 10.1016/j.cels.2024.01.005 PubMed 38335954
