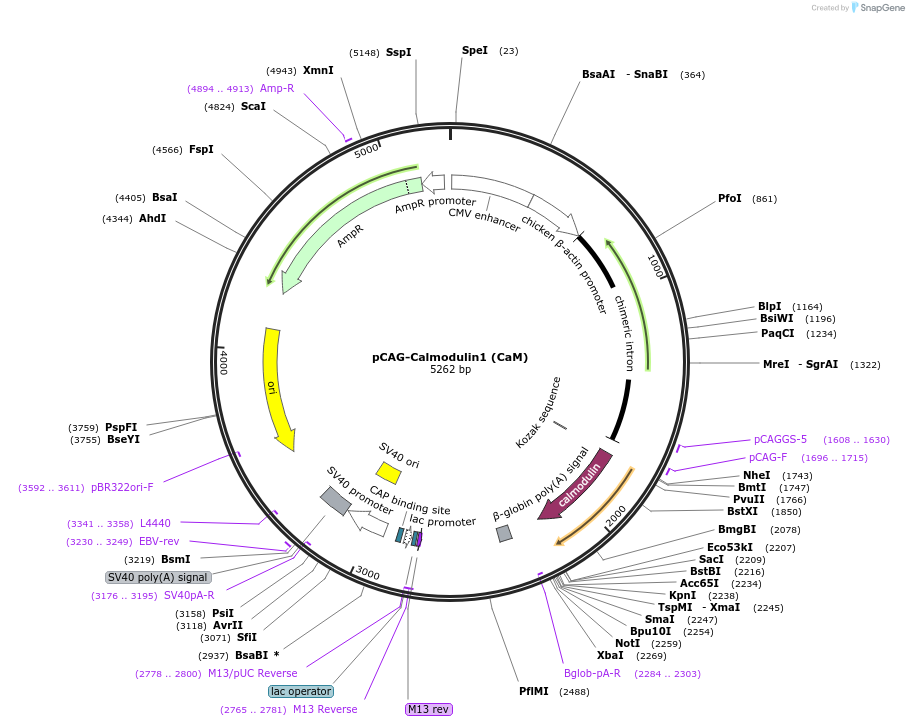

pCAG-Calmodulin1 (CaM)
(Plasmid
#240202)
-
PurposeCalmodulin-1 for CaMK2-alpha sensor assays in mammalian cell lines
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 240202 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $89 |
Backbone
-
Vector backbonepCAG
- Backbone size w/o insert (bp) 4815
- Total vector size (bp) 5262
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namecalmodulin-1
-
Alt nameCaM
-
Alt nameCalm1
-
Alt namecalmodulin-1 isoform 2
-
SpeciesM. musculus (mouse)
-
Insert Size (bp)447
-
GenBank IDNM_009790.5 NM_009790.5
-
Entrez GeneCalm1 (a.k.a. CaM, Calm, Cam1)
- Promoter pCAG
-
Tag
/ Fusion Protein
- None
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site NheI (not destroyed)
- 3′ cloning site SacI (not destroyed)
- 5′ sequencing primer GCCTCTGCTAACCATGTTC (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCAG-Calmodulin1 (CaM) was a gift from Ryohei Yasuda (Addgene plasmid # 240202 ; http://n2t.net/addgene:240202 ; RRID:Addgene_240202) -
For your References section:
Dendritic, delayed, stochastic CaMKII activation in behavioural time scale plasticity. Jain A, Nakahata Y, Pancani T, Watabe T, Rusina P, South K, Adachi K, Yan L, Simorowski N, Furukawa H, Yasuda R. Nature. 2024 Oct 9. doi: 10.1038/s41586-024-08021-8. 10.1038/s41586-024-08021-8 PubMed 39385027
